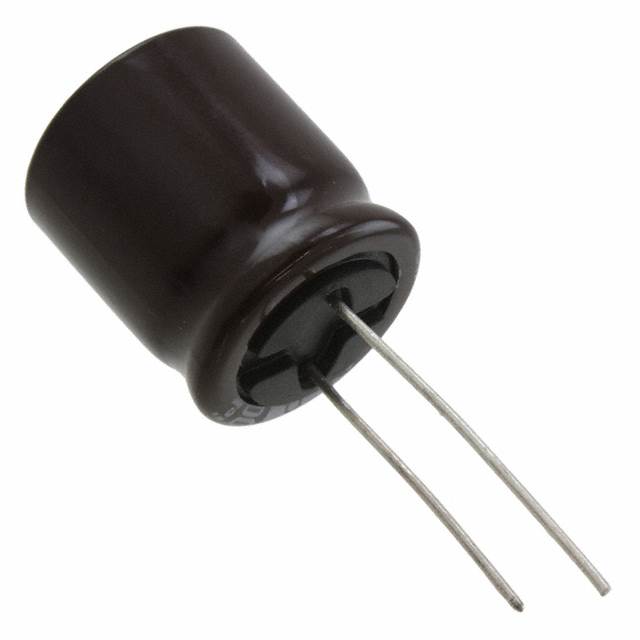

PJ 系列 390 uF 80 V 20 % 通孔 径向 铝电解电容
has you covered with their pure aluminum electrolytic electrolytic capacitor, designed to filter out lower frequencies. It can withstand a voltage of 80 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 936@1Min μA. Its capacitance value is 390uF. The UPJ1K391MHD6 aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 18 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.
额定电压DC 80.0 V
电容 390 µF
等效串联电阻ESR 0.089 Ω
容差 ±20 %
产品系列 UPJ
纹波电流 908 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 80 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
高度 20 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 400
寿命（小时） 5000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UPJ1K391MHD6 Nichicon 尼吉康 | 当前型号 | 当前型号 |
UPM1K391MHD6TN 尼吉康 | 类似代替 | UPJ1K391MHD6和UPM1K391MHD6TN的区别 |
