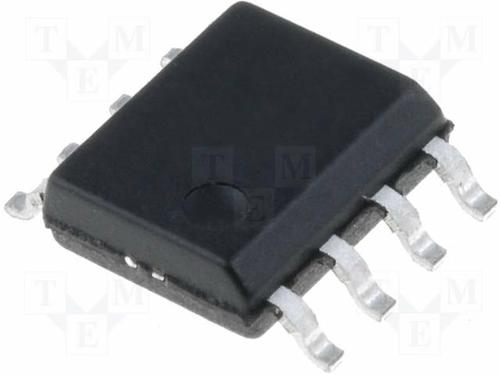

TEXAS INSTRUMENTS UCC3813D-3 电流模式控制器, PWM, 10V-0V电源, 1 MHz, 4.06V/200mA输出, SOIC-8
Easily modulate voltage levels to meet your project"s specifications using the Texas Instruments current controller. This current mode controller supports boost|buck|flyback|forward topology. Its single PWM output produces a current of 1000 mA. Its switching regulator has a frequency of 1000 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller"s maximum duty cycle is 100 %. This device has a maximum of 12 V. This current mode controller has an operating temperature range of 0 °C to 70 °C.
频率 1 MHz
电源电压DC 0.00Vmin, 10.0Vmax
输出接口数 1
输出电压 4.06 V
输出电流 200 mA
供电电流 1.2 mA
通道数 1
针脚数 8
耗散功率 0.65 W
调节输出数 1
上升时间 41 ns
开关频率 31 kHz
拓扑结构 Buck, Boost, Flyback, Forward
占空比 100 %
最大占空比 100 %
下降时间 44 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 650 mW
电源电压 4V ~ 10V
电源电压Max 10 V
电源电压Min 0 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
