铝电解电容器 - 径向引线型 4.7uF 50 Volts 20%
4.7 µF 50 V 铝电解器 径向,Can - 105°C 时为 2000 小时
得捷:
CAP ALUM 4.7UF 20% 50V RADIAL
立创商城:
4.7uF ±20% 50V
贸泽:
铝电解电容器 - 径向引线型 4.7uF 50 Volts 20%
艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UPJ1H4R7MDD1TD aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 4.7uF. This product is 11 mm tall with a diameter of 5 mm. Its leakage current is 7.05@1Min μA. The UPJ1H4R7MDD1TD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2 mm.
安富利:
Cap Aluminum 4.7uF 50V 20% 5 X 11mm Radial 2mm 40mA 2000 hr 105°C Ammo Pack
额定电压DC 50.0 V
电容 4.7 µF
容差 ±20 %
纹波电流 40 mA
纹波电流高频 40mA @120Hz
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2

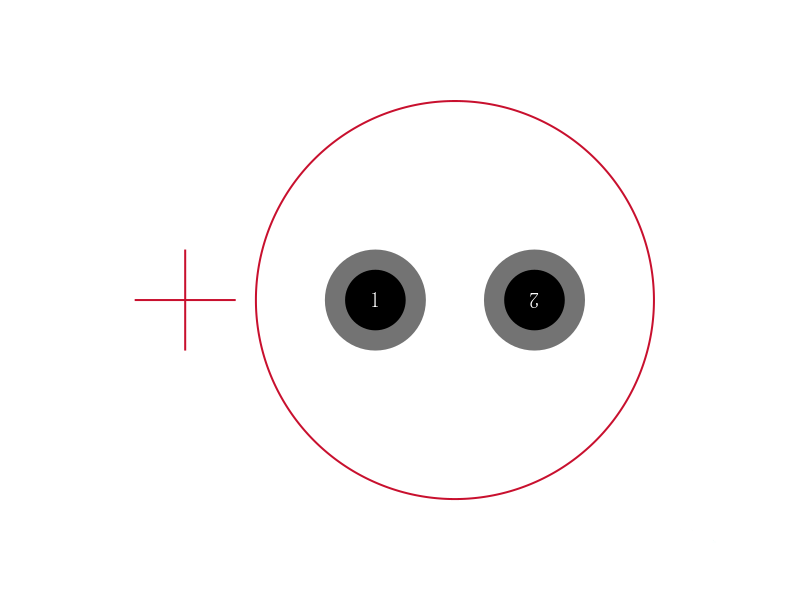

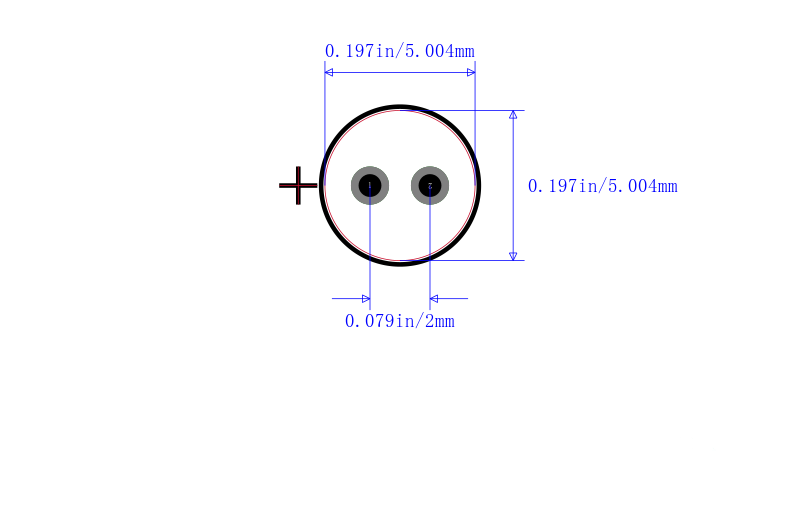

封装 Radial, CAN
引脚间距 2 mm
长度 11 mm
高度 11 mm
直径 5.00 mm
封装 Radial, CAN
引脚间距 2 mm
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
寿命(小时) 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UPJ1H4R7MDD1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UPM1H4R7MDD1TD 尼吉康 | 完全替代 | UPJ1H4R7MDD1TD和UPM1H4R7MDD1TD的区别 |
UPW1H4R7MDD 尼吉康 | 类似代替 | UPJ1H4R7MDD1TD和UPW1H4R7MDD的区别 |
UPM1H4R7MDD 尼吉康 | 类似代替 | UPJ1H4R7MDD1TD和UPM1H4R7MDD的区别 |
