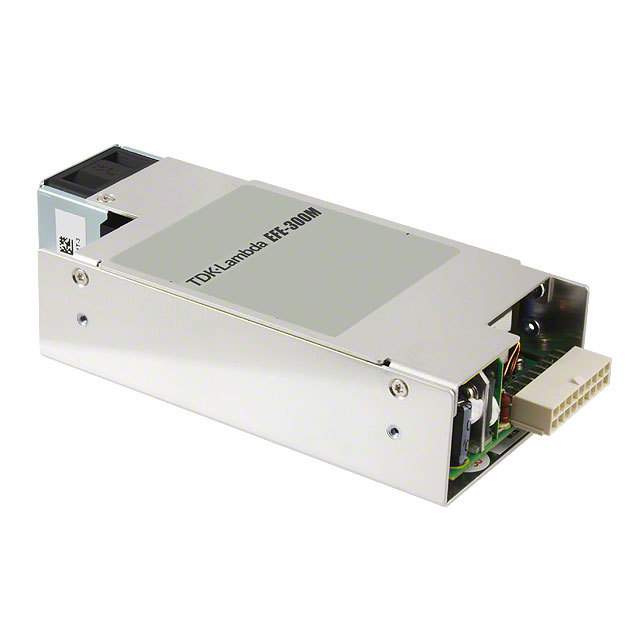

AC-DC Power Supply Single-OUT 48V 6.25A 300W Medical 23Pin
EFE300M Series 300W 3 x 6" Power Supplies
**Features:**
* Full Digital Control
* Improved product performance
* High Efficiency
* Less heat dissipated in system
* Low Profile
* Fits in 1U enclosures
* Reinforced Isolation 4kVAC input to output
* Suitable for medical applicaitons
* Medical Safety Certifications BF Rated
* Fully Featured - including ORing Diode
* Universal Input 90 - 264VAC
* 400W Peak Loading 10s
* Suitable for 1U applications
额定功率 300 W
输出接口数 1
输出电压 48 VDC
输出电流 6.25 A
输出功率 300 W
隔离电压 4 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 6.25 A
工作温度Max 50 ℃
工作温度Min 0 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 23
长度 2.95 in
宽度 1.46 in
高度 6.3 in
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
