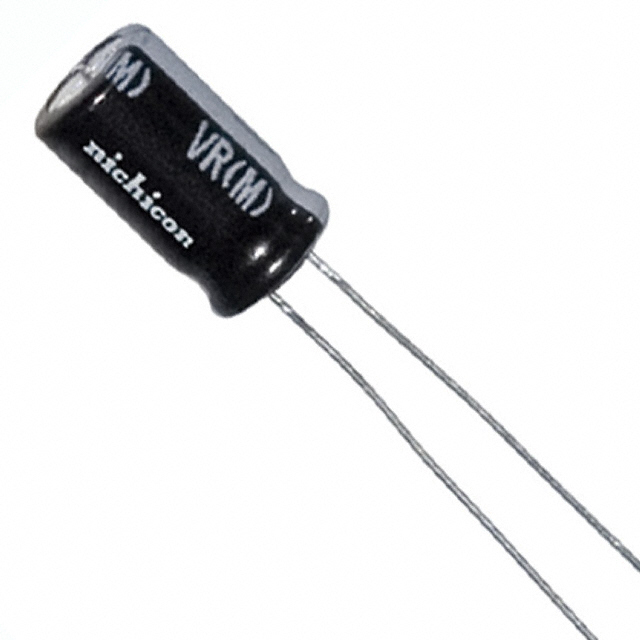

VR 系列 220 uF 25 V 20 % 通孔 径向 铝 电解电容
Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic aluminum capacitor from for its relatively high ESR! It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. The UVR1E221MPD1TA aluminum electrolytic capacitor has a radial termination style. Its leakage current is 165@1Min|55@2Min μA. Its capacitance value is 220uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 11.5 mm tall with a diameter of 8 mm.
额定电压DC 25.0 V
电容 220 µF
容差 ±20 %
纹波电流 330 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 25 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
长度 11.5 mm
高度 11.5 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UVR1E221MPD1TA Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVR1E221MPD 尼吉康 | 完全替代 | UVR1E221MPD1TA和UVR1E221MPD的区别 |
UVR1E221MPD1TD 尼吉康 | 完全替代 | UVR1E221MPD1TA和UVR1E221MPD1TD的区别 |
UFW1E221MPD1TD 尼吉康 | 类似代替 | UVR1E221MPD1TA和UFW1E221MPD1TD的区别 |
