UCC37321P

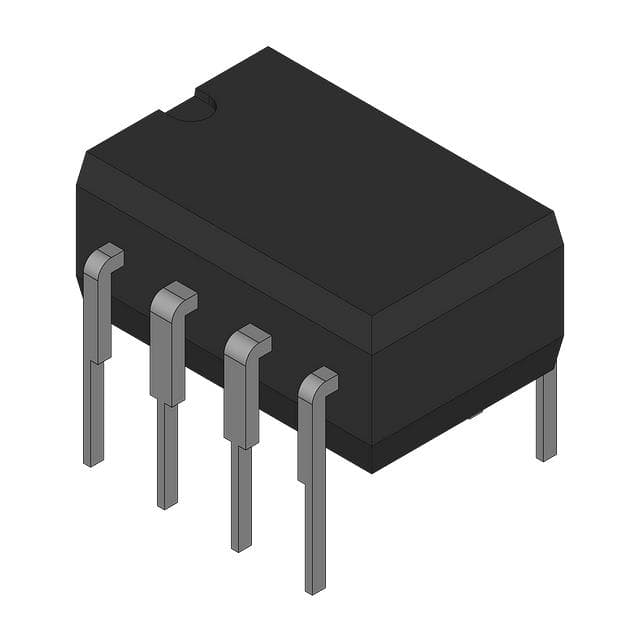

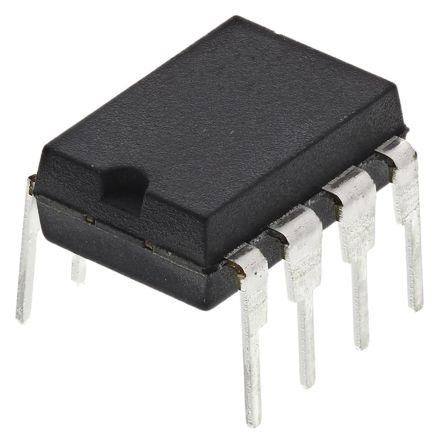

TEXAS INSTRUMENTS  UCC37321P.  芯片, MOSFET, 低压侧, 4V-15V电源, 9A输出, 35ns延迟, DIP-8

MOSFET & IGBT Drivers, 6A to 10A, Texas Instruments

Texas Instruments 专用栅极驱动器 IC 系列适用于 MOSFET 和 IGBT 应用。 设备可提供适合与 MOSFET 和 IGBT 电源设备兼容的高电流输出，且提供各种配置和封装类型。

### MOSFET & IGBT 驱动器，Texas Instruments

欧时:
Texas Instruments UCC37321P MOSFET 功率驱动器, 9A, 4 → 15 V电源, 8引脚 PDIP封装

得捷:
IC GATE DRVR LOW-SIDE 8DIP

立创商城:
低边 MOSFET 灌:9A 拉:9A

德州仪器TI:
9-A/9-A single-channel gate driver with inverting input, split outputs and enable

e络盟:
芯片, MOSFET, 低压侧, 4V-15V电源, 9A输出, 35ns延迟, DIP-8

艾睿:
Driver 9A 1-OUT Low Side Inv 8-Pin PDIP Tube

安富利:
* Industry-Standard Pin-Out With Addition of Enable Funtion* High-Peak Current Drive Capability of ±9 A at the Miller Plateau Region Using TrueDrive* Efficient Constant Current Sourcing Using a Unique BiPolar & CMOS Output Stage* TTL/CMOS Compatible Inputs Independent of Supply Voltage* 20-ns Typical Rise and Fall Times with 10-nF Load* Typical Propagation Delay Times of 25 ns With Input Falling and 35 ns with Input Rising* 4-V to 15-V Supply Voltage* Available in Thermally Enhanced MSOP PowerPAD Package With 4.7°C/W θjc* Rated From –40°C to 105°C* Pb-Free Finish NiPdAu on SOIC-8 and PDIP-8 Packages

Chip1Stop:
Driver 9A 1-OUT Low Side Inv 8-Pin PDIP Tube

TME:
Driver; MOSFET; 9A; 150mV; 350mW; Channels:1; DIP8

Verical:
Driver 9A 1-OUT Low Side Inv 8-Pin PDIP Tube

Newark:
# TEXAS INSTRUMENTS  UCC37321P  MOSFET Driver Single, Low Side Inverting, 4V-15V supply, 9A peak out, 15 Ohm output, DIP-8
