低功耗经济型BiCMOS电流模式PWM Low Power Economy BiCMOS Current Mode PWM
This current controller by Texas Instruments will provide current from an external source to an external system in order to properly create a barrier. Its single PWM output produces a current of 1000 mA. This current mode controller supports boost|flyback|forward topology. This part offers a switching frequency of 1000 kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This current mode controller"s maximum duty cycle is 50 %. This current mode controller has an operating temperature range of -40 °C to 85 °C. This device has a maximum of 12 V.
频率 1.00 MHz
电源电压DC 0.00Vmin, 10.0Vmax
输出接口数 1
输出电压 1.00 V
输出电流 1 A
供电电流 1.2 mA
耗散功率 0.65 W
调节输出数 1
上升时间 41 ns
开关频率 1 MHz
拓扑结构 Boost, Flyback, Forward
占空比 50 %
最大占空比 50 %
下降时间 44 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 650 mW
电源电压 8.3V ~ 10V
安装方式 Surface Mount
引脚数 8

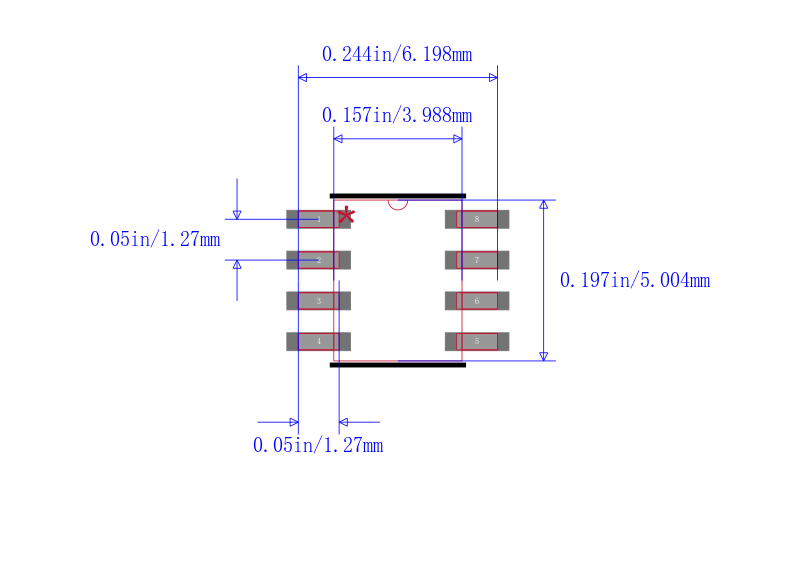

封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCC2813DTR-4 TI 德州仪器 | 当前型号 | 当前型号 |
UCC2813DTR-2 德州仪器 | 完全替代 | UCC2813DTR-4和UCC2813DTR-2的区别 |
UCC2813DTR-3 德州仪器 | 完全替代 | UCC2813DTR-4和UCC2813DTR-3的区别 |
UCC2813DTR-0 德州仪器 | 完全替代 | UCC2813DTR-4和UCC2813DTR-0的区别 |
