68uF ±20% 16V 230mA100kHz230mA Φ6.3mm
68 µF 16 V 铝电解器 径向,Can - SMD - 105°C 时为 2000 小时
立创商城:
68uF ±20% 16V
得捷:
CAP ALUM 68UF 20% 16V SMD
艾睿:
This electrolytic UUD1C680MCL1GS aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 10.88@2Min μA. Its capacitance value is 68uF. This product is 5.8 mm tall with a diameter of 5 mm.
安富利:

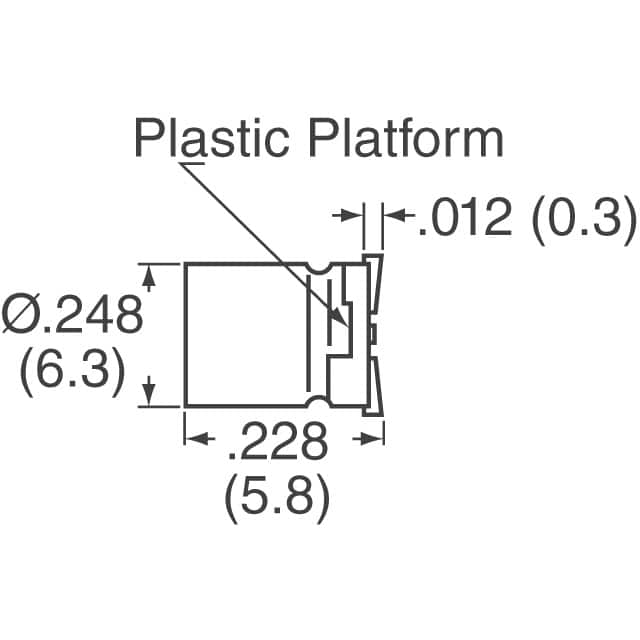

Cap Aluminum 68uF 16V 20% 6.3 X 5.8mm SMD 230mA 2000 hr 105°C T/R
Chip1Stop:
Cap Aluminum Lytic 68uF 16V 20% 6.3 X 5.8mm SMD 240mA 2000h 105ÂÂ℃ T/R
Verical:
Cap Aluminum Lytic 68uF 16V 20% 6.3 X 5.8mm SMD 230mA 2000h 105C Automotive T/R
Newark:

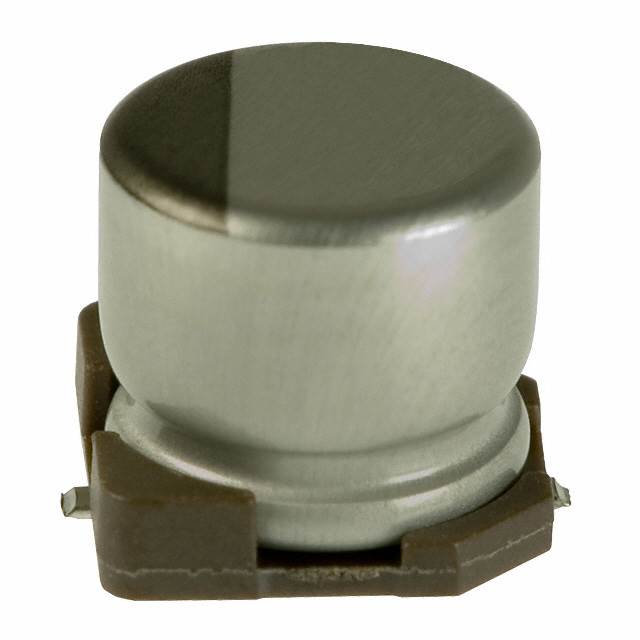

# NICHICON UUD1C680MCL1GS SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 68 µF, 16 V, UD Series
额定电压DC 16.0 V
电容 68 µF
等效串联电阻ESR 0.44 Ω
容差 ±20 %
产品系列 UUD
纹波电流 230 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 5.80 mm
高度 5.8 mm
直径 6.30 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
寿命(小时) 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UUD1C680MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
UUD1E680MCL1GS 尼吉康 | 类似代替 | UUD1C680MCL1GS和UUD1E680MCL1GS的区别 |
UUD1C680MCR1GS 尼吉康 | 类似代替 | UUD1C680MCL1GS和UUD1C680MCR1GS的区别 |
EEEFC1C680P 松下 | 功能相似 | UUD1C680MCL1GS和EEEFC1C680P的区别 |
