UVR2G4R7MPD1TD

NICHICON  UVR2G4R7MPD1TD  铝电解电容, 4.7uF, 400V, 20%, 径向引线, 整卷

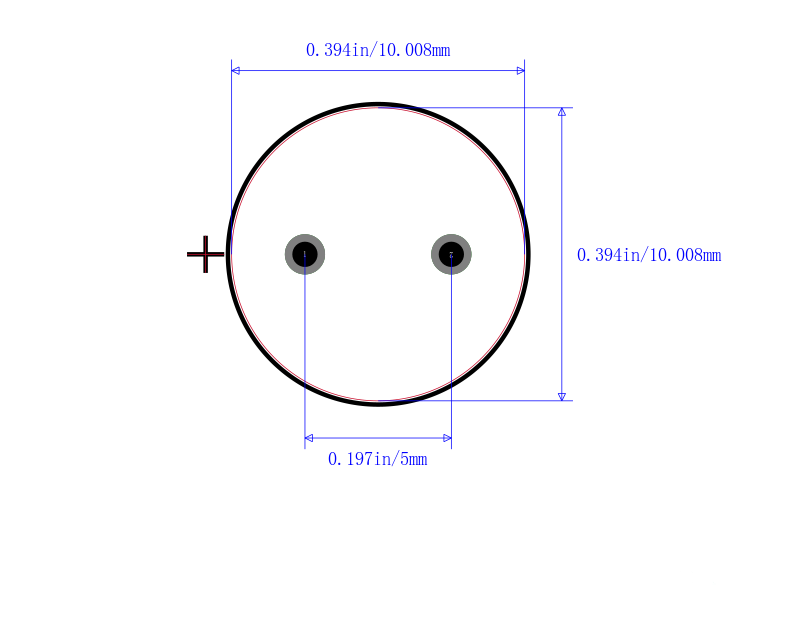

Using the aluminum anode based electrolytic electrolytic capacitor, developed by , you can filter out lower signal frequencies. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 16 mm tall with a diameter of 10 mm. Its capacitance value is 4.7uF. It has a tolerance of 20%. The UVR2G4R7MPD1TD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 175.2@1Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.
