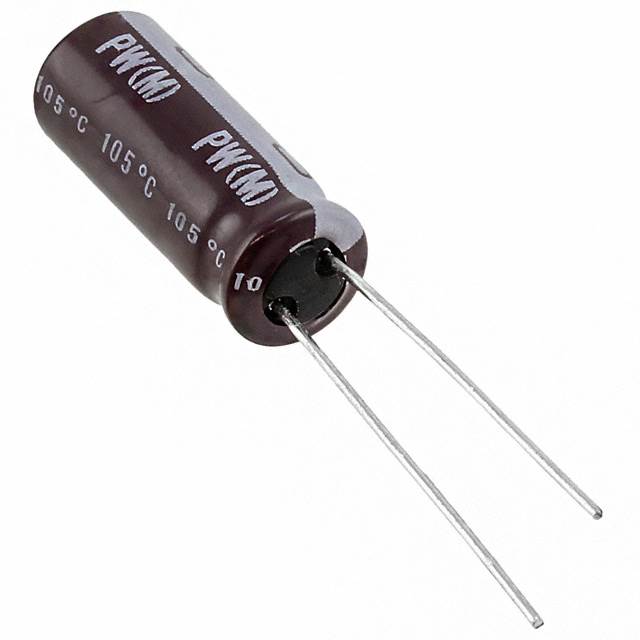

UPW1A102MPD6TD

NICHICON  UPW1A102MPD6TD  铝电解电容, 1000UF, 10V, 20%, 径向引线, 整卷

1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C

立创商城:
1000uF ±20%

得捷:
CAP ALUM 1000UF 20% 10V RADIAL

e络盟:
铝电解电容, 1000UF, 10V, 20%, 径向引线, 整卷

艾睿:
This electrolytic UPW1A102MPD6TD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPW1A102MPD6TD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 20 mm tall with a diameter of 8 mm. Its capacitance value is 1000uF. It has a tolerance of 20%. Its leakage current is 300@1Min μA.

Allied Electronics:
Capacitor

Verical:
Cap Aluminum Lytic 1000uF 10V 20% 8 X 20mm Radial 3.5mm 995mA 3000h 105C Automotive Ammo

Newark:
# NICHICON  UPW1A102MPD6TD  Electrolytic Capacitor, Miniature, 1000 µF, 10 V, PW Series, ± 20%, Radial Leaded, 8 mm
