USR1C330MDD

SR 系列良好的电容值电压比。 7mm 高度 Capacitance Tolerance % | 20 ---|--- Temperature Range °C | -40 → +85 Leakage Current | 0.01 CV or 3μA Whichever is the Greater Life Expectancy at 85ºC | 2000 hours ### 径向，85°C

SR 系列

良好的值电压比。

7mm 高度

Capacitance Tolerance % | 20

---|---

Temperature Range °C | -40 → +85

Leakage Current | 0.01 CV or 3μA Whichever is the Greater

Life Expectancy at 85ºC | 2000 hours

立创商城:
33uF ±20% 16V

得捷:
CAP ALUM 33UF 20% 16V RADIAL

欧时:
Nichicon 铝电解电容器 SR 系列 16V dc 33μF 通孔 USR1C330MDD, ±20%容差, 最高+85°C

艾睿:

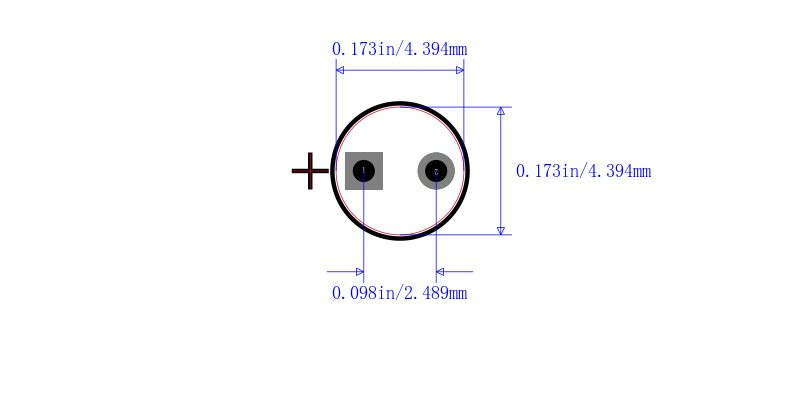

Use this relatively high equivalent series resistance electrolytic USR1C330MDD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.45 mm and a pitch of 2 mm. This product is 7 mm tall with a diameter of 5 mm. Its leakage current is 3@2Min μA. It has a tolerance of 20%. Its capacitance value is 33uF. The USR1C330MDD aluminum electrolytic capacitor has a radial termination style.

Allied Electronics:
33uF 16 V dc Aluminium Electrolytic Capacitor, SR Series 2000h 5 Dia. x 7mm

安富利:
Cap Aluminum 33uF 16V 20% 5 X 7mm Radial 2mm 55mA 2000 hr 85°C Bulk
