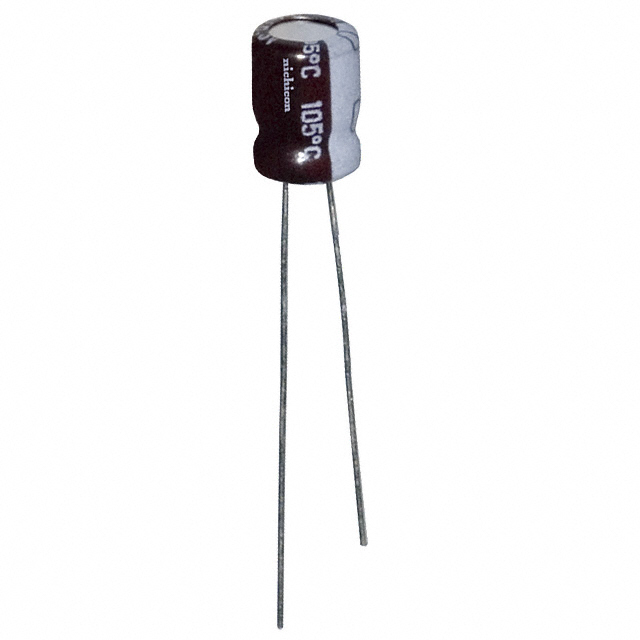

UPW1V120MDD

PW 系列径向 6.3 到 35V### 径向 105°C

PW 系列径向 6.3 到 35V

得捷:
CAP ALUM 12UF 20% 35V RADIAL

欧时:
Nichicon 铝电解电容器 PW 系列 35V dc 12μF 通孔 UPW1V120MDD, ±20%容差, 最高+105°C

立创商城:
12uF ±20% 35V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 35volts 12uF 5x7 20% 2LS

艾睿:

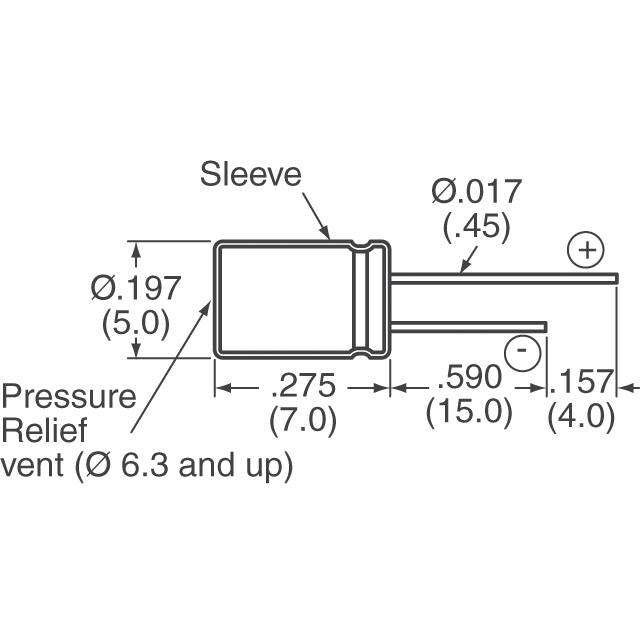

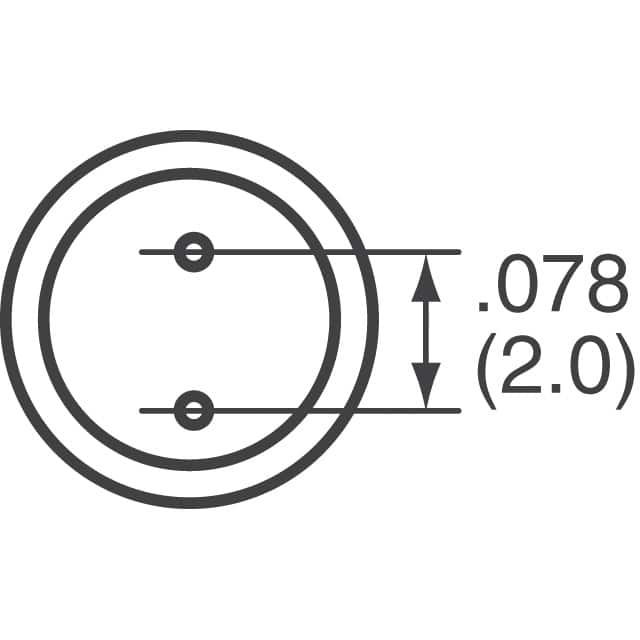

This electrolytic UPW1V120MDD aluminum capacitor from Nichicon has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.45 mm and a pitch of 2 mm. This product is 7 mm tall with a diameter of 5 mm. Its capacitance value is 12uF. Its leakage current is 12.6@1Min μA. The UPW1V120MDD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.

Allied Electronics:
12uF 35 V dc Aluminium Electrolytic Capacitor, PW Series 2000h 5 Dia. x 7mm

安富利:
Cap Aluminum 12uF 35V 20% 5 X 7mm Radial 2mm 120mA 2000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 12uF 35V 20% 5 X 7mm Radial 2mm 120mA 2000h 105℃ Automotive Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 12uF; 35VDC; Ø5x7mm
