UVR2D2R2MED

2.2uF ±20% 200V Φ6.3mm 11mm

2.2 µF 200 V 铝电解器 径向，Can - 85°C 时为 2000 小时

立创商城:
2.2uF ±20% 200V

得捷:
CAP ALUM 2.2UF 20% 200V RADIAL

艾睿:

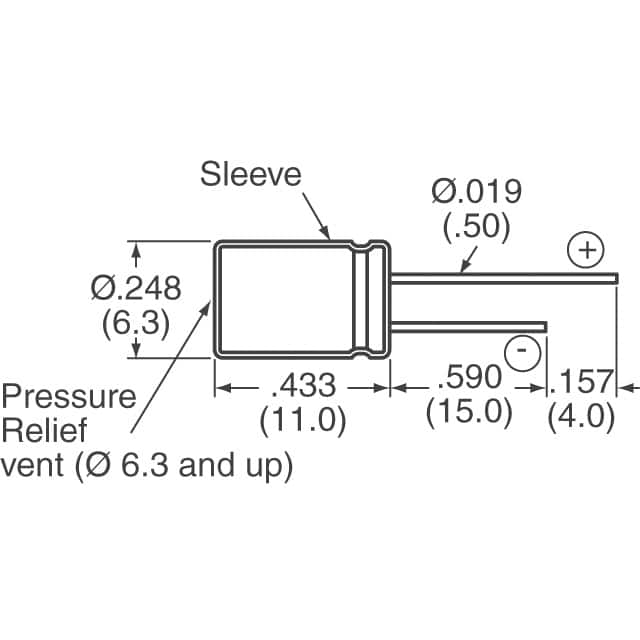

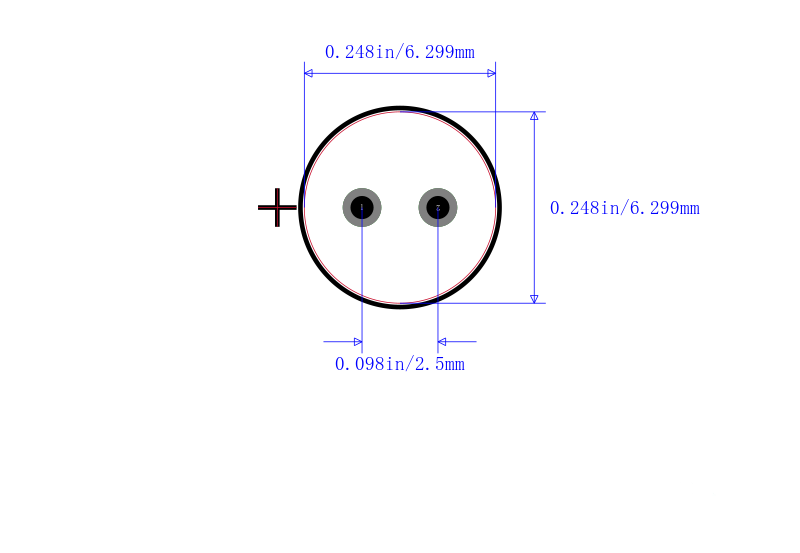

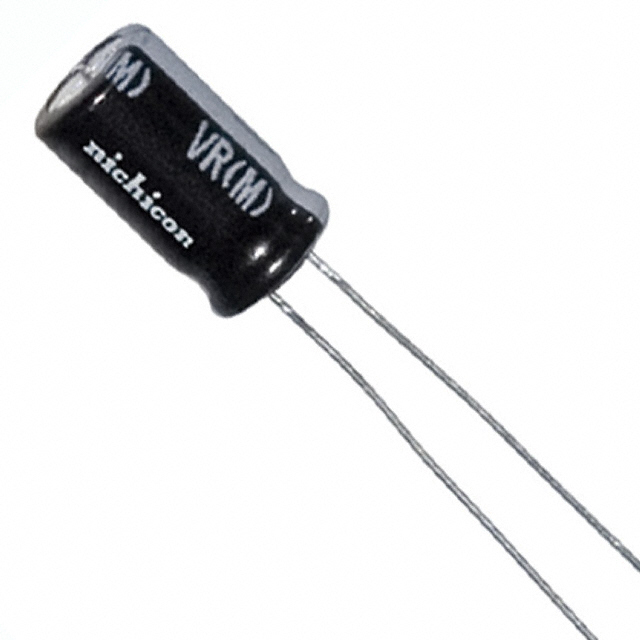

By using pure aluminum foil in the anode, this electrolytic UVR2D2R2MED aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 11 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%. The UVR2D2R2MED aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 2.2uF.

安富利:
Cap Aluminum 2.2uF 200V 20% 6.3 X 11mm Radial 2.5mm 33mA 2000 hr 85°C Bulk

TME:
Capacitor: electrolytic; THT; 2.2uF; 200VDC; Ø6.3x11mm; ±20%; 33mA
