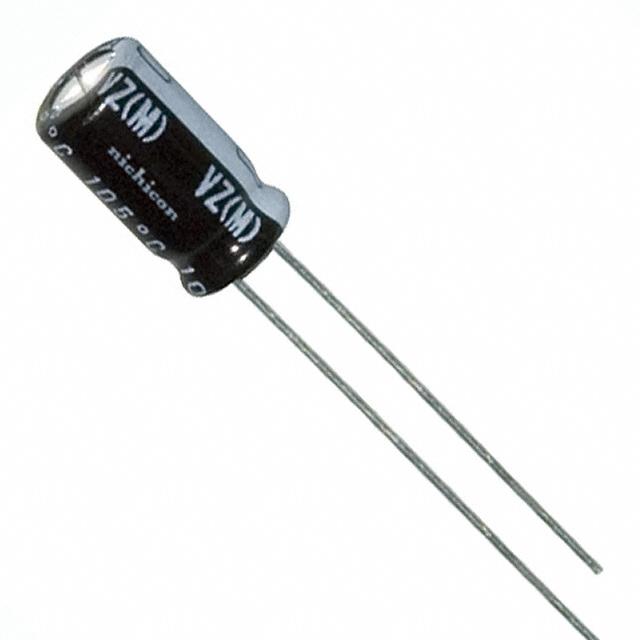

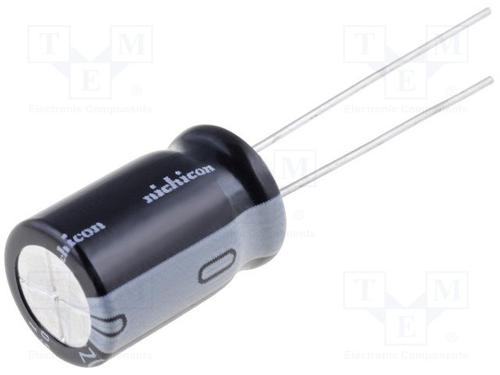

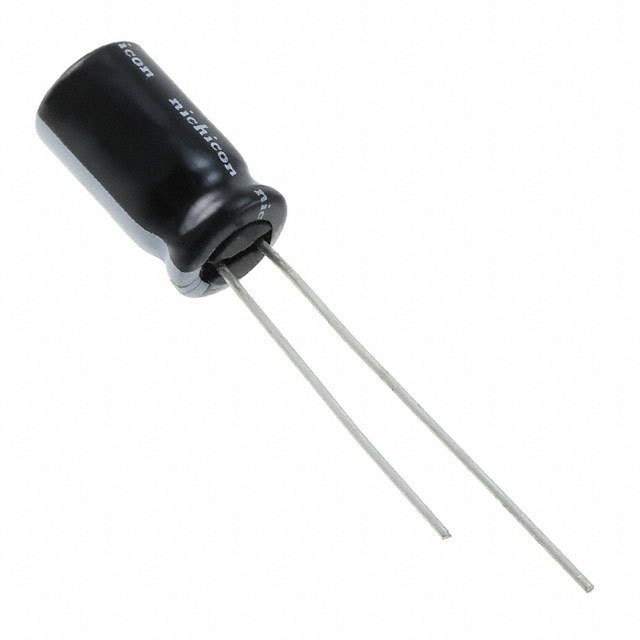

UVZ1J330MED

VZ 系列 33 uF 63 V 20 % 通孔 径向 铝电解电容

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

立创商城:
33uF ±20% 63V

得捷:
CAP ALUM 33UF 20% 63V RADIAL

艾睿:
By using pure aluminum foil in the anode, this electrolytic UVZ1J330MED aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. The UVZ1J330MED aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 33uF. Its leakage current is 62.37@1Min|20.79@2Min μA. This product is 11 mm tall with a diameter of 6.3 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 33uF 20% Radial 6.3X11 LS 2.5mm

安富利:
Cap Aluminum 33uF 63V 20% 6.3 X 11mm Radial Aluminum Cylindrical Can 2.5mm 100mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 33uF; 63VDC; Ø6.3x11mm; Pitch:2.5mm
