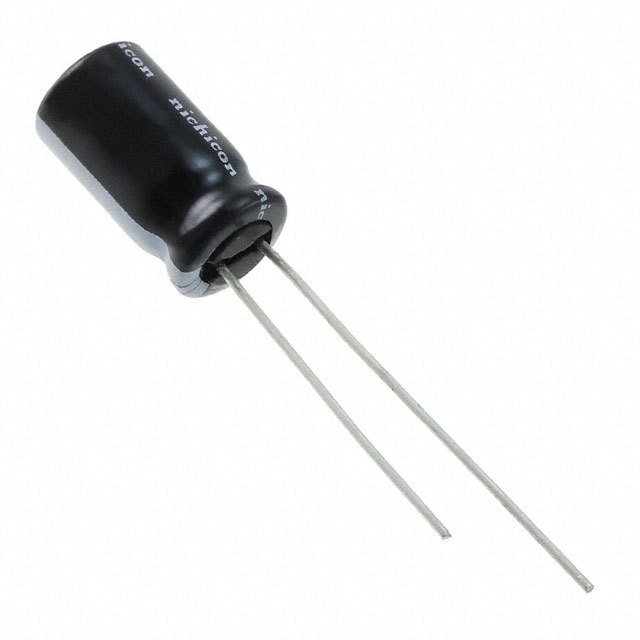

UVZ2C2R2MED

2.2uF ±20% 160V Φ6.3mm 11mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 2.2UF 20% 160V RADIAL

立创商城:
2.2uF ±20% 160V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 160volts 2.2uF 6.3x11 20% 2.5LS

艾睿:
This electrolytic UVZ2C2R2MED aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. The UVZ2C2R2MED aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 2.2uF. Its leakage current is 75.2@1Min μA. It has a tolerance of 20%. This product is 11 mm tall with a diameter of 6.3 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 2.2uF 20% Radial 6.3X11 LS 2.5mm

TME:
Capacitor: electrolytic; THT; 2.2uF; 160VDC; Ø6.3x11mm; ±20%; 1000h
