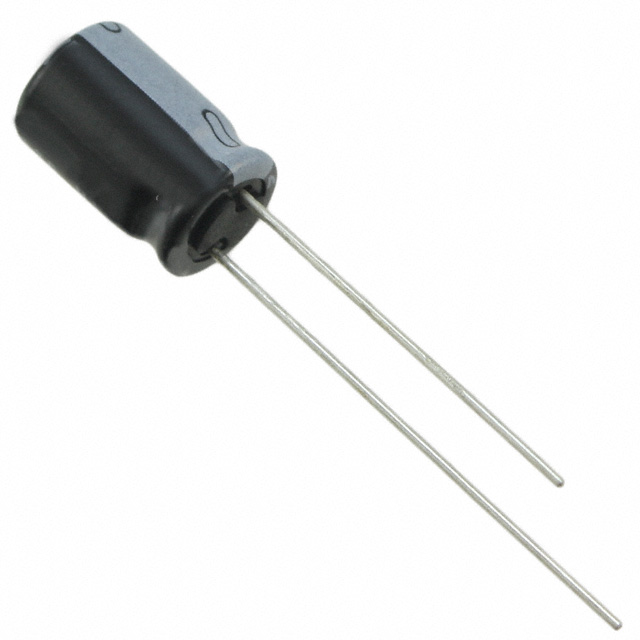

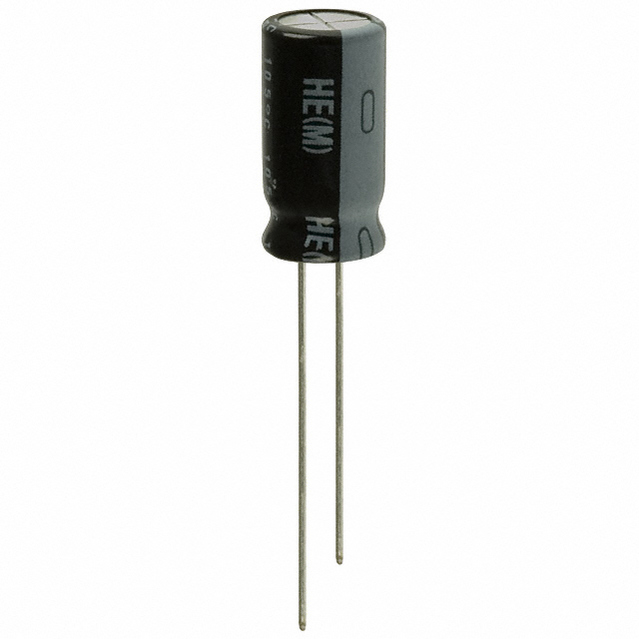

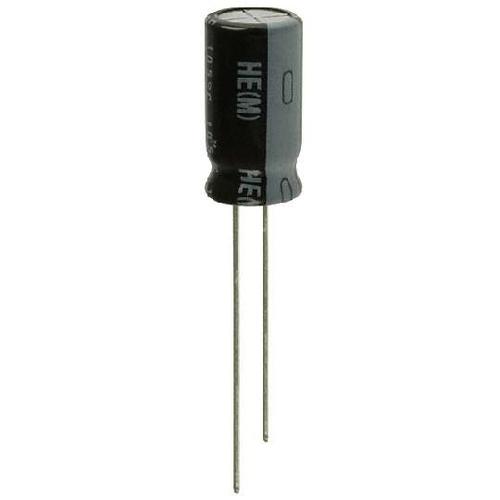

HE 系列 1000 uF 6.3 V 20 % 通孔 径向 铝电解电容
Use this relatively high equivalent series resistance electrolytic aluminum capacitor from to generate high heat for a given current level. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 15 mm tall with a diameter of 8 mm. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. The UHE0J102MPD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 63@2Min μA. Its capacitance value is 1000uF.
额定电压DC 6.30 V
电容 1000 µF
等效串联电阻ESR 350 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 840 mA
纹波电流高频 630mA @120Hz
纹波电流低频 840mA @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 6.3 V

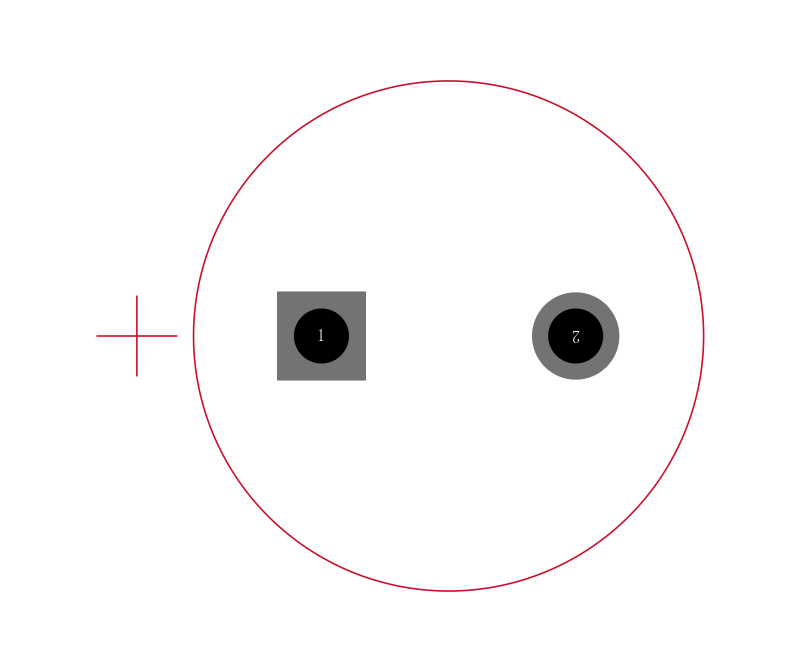

安装方式 Through Hole
引脚数 2
封装 Radial, CAN

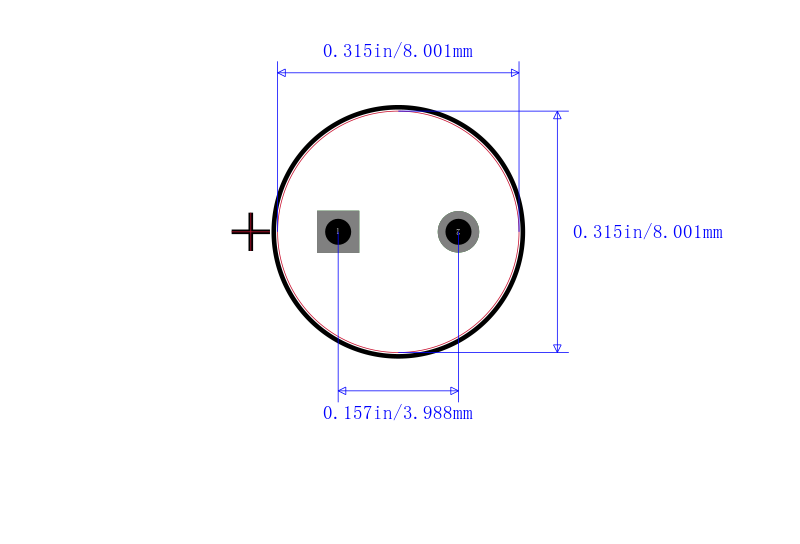

引脚间距 3.5 mm
长度 15.0 mm
高度 15 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 2000
寿命（小时） 6000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE0J102MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE0J102MPD1TD 尼吉康 | 类似代替 | UHE0J102MPD和UHE0J102MPD1TD的区别 |
UHM0J102MPD 尼吉康 | 类似代替 | UHE0J102MPD和UHM0J102MPD的区别 |
UHE0J102MPT 尼吉康 | 类似代替 | UHE0J102MPD和UHE0J102MPT的区别 |
