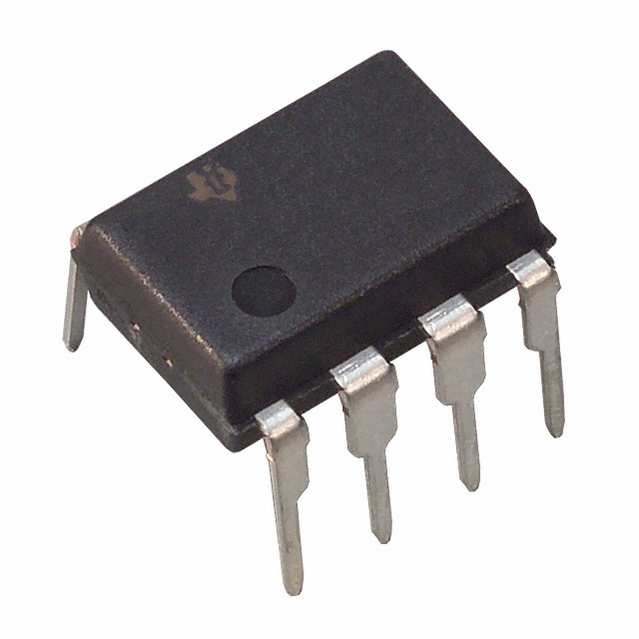

低功耗经济型BiCMOS电流模式PWM Low Power Economy BiCMOS Current Mode PWM
If you are in need of a tool that can regulate the amount of voltage entering your external circuit, look no further than the current controller from Texas Instruments. This current mode controller supports boost|flyback|forward topology. Its single PWM output produces a current of 1000 mA. You can operate this at a switching frequency of 1000 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller"s maximum duty cycle is 50 %. This device has a maximum of 12 V. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
频率 1.00 MHz
电源电压DC 12.0V max
输出接口数 1
输出电压 1.00 V
输出电流 1 A
供电电流 500 µA
调节输出数 1
上升时间 41 ns
开关频率 1000 kHz
拓扑结构 Boost, Flyback, Forward
占空比 50 %
最大占空比 50 %
下降时间 44 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 8.3V ~ 10V
安装方式 Through Hole
引脚数 8
封装 PDIP-8
封装 PDIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC2813N-4 TI 德州仪器 | 当前型号 | 当前型号 |
UCC3813N-4 德州仪器 | 完全替代 | UCC2813N-4和UCC3813N-4的区别 |
UCC3813N-4G4 德州仪器 | 类似代替 | UCC2813N-4和UCC3813N-4G4的区别 |
