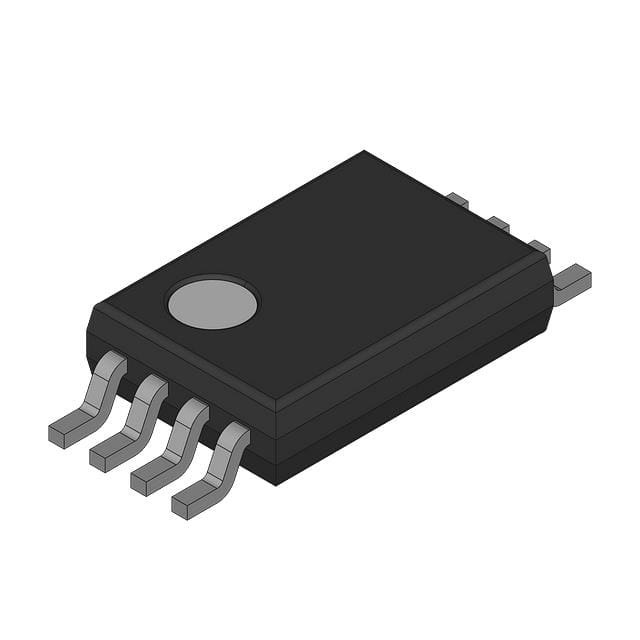

UCC28083PW

PWM控制器

离线转换器 推挽式 拓扑 50kHz ~ 1MHz 8-TSSOP

得捷:
IC OFFLINE SW PUSH-PULL 8TSSOP

立创商城:
UCC28083PW

德州仪器TI:
Current mode push-pull PWM with prog. slope comp, 3.5ms soft start, 12.5/8.3 UVLO, -40°C to 85°C

艾睿:
Look no further! The UCC28083PW PWM controller from Texas Instruments is the ideal tool for interfacing two different voltage circuits together. This current mode controller supports half-bridge|push-pull topology. Its 2 PWM outputs produce a current of 1000Max mA. It has a switching frequency of 50 to 1000 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a maximum of 15 V. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C. This current mode controller&s;s maximum duty cycle is 50 %.

安富利:
Current Mode PWM Controller 1A 8-Pin TSSOP Tube

Chip1Stop:
Current Mode PWM Controller 1A 50kHz to 1000kHz 8-Pin TSSOP Tube

Verical:
Current Mode PWM Controller 1A 50kHz to 1000kHz 8-Pin TSSOP Tube

力源芯城:
电流方式PWM控制器
