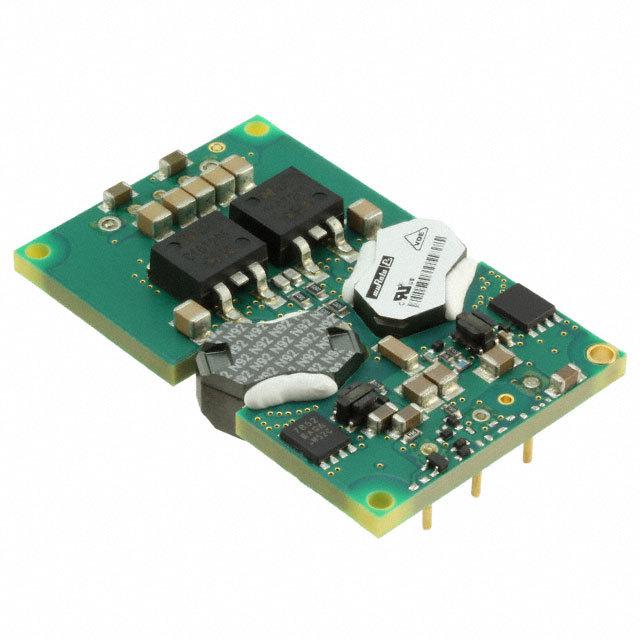

低的简介，孤立的1/4砖2.5 40安培的DC / DC转换器 Low Profi le, Isolated Quarter Brick 2.5 40 Amp DC/DC Converters
48V 120W DC/DC Converter
得捷:
DC DC CONVERTER 48V 120W
贸泽:
Isolated DC/DC Converters 48Vout 2.5A 120W 24Vin Pos Polarity
艾睿:
Provide the ability to switch between voltages by using this step up UVQ-48/2.5-D24P-C DC to DC converter and switching regulator module. It has a voltage of 48 V. This part has a temperature range of -40 °C to 110 °C.
安富利:
Module DC-DC 1-OUT 48V 2.5A 120W 8-Pin Quarter-Brick
Chip1Stop:
Module DC-DC 1-OUT 48V 2.5A 120W 8-Pin Quarter-Brick
额定功率 120 W
输出接口数 1
输出电压 48 V
输出电流 2.5 A
输出功率 120 W
隔离电压 2 kV
开关频率 275 kHz
输入电压Max 36 V
输入电压Min 18 V
输出电流Max 2.5 A
工作温度Max 110 ℃
工作温度Min -40 ℃
输入电压 24 V
安装方式 Through Hole
引脚数 8
封装 Quarter-Brick
封装 Quarter-Brick
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Tray
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
