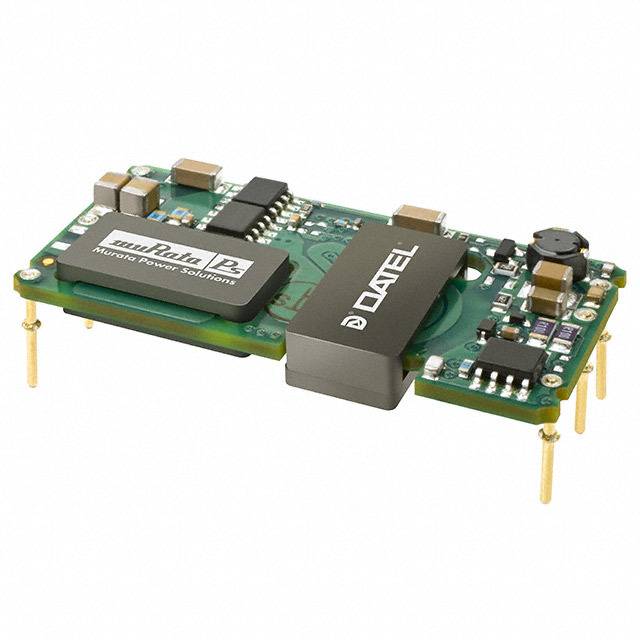

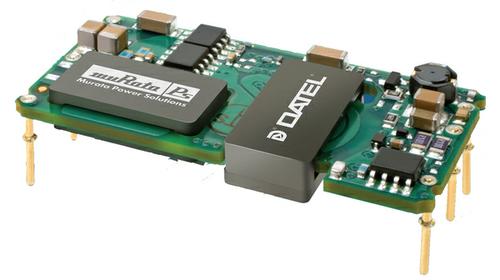

30W隔离宽范围DC / DC转换器 30W Isolated Wide-Range DC/DC Converters
Featuring a full 30 Watt output in 1.8 square inches of board area, the UEI series isolated DC/DC converter family offers efficient regulated DC power for printed circuit board mounting.
FEATURES
Small footprint DC/DC converter, ideal for high current applications
0.92" x 1.92" x 0.35" open frame package
Wide range input voltages 9-36 and 18-75Vdc
Assembly and attachment for RoHS-6 hazard ous substance compliance
Isolation up to 2250 VDC basic
UP to 30W total output power with overtemperature shutdown
High efficiency synchronous rectifi er forward topology
Stable no-load operation with no required external components
–40 to +85°C temperature range; see derating
Certifi ed to UL60950-1, CSA-C22.2 No. 234, EN60950-1 safety approvals
Extensive self-protection shut down features
RoHS-6 hazardous substance compliant
额定功率 30 W
输出接口数 1
输出电压 3.3 V
输出电流 9 A
输出功率 29.7 W
隔离电压 2.25 kV
开关频率 280 kHz
输入电压Max 75 V
输入电压Min 18 V
输出电流Max 9 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 18V ~ 75V
安装方式 Through Hole
引脚数 6
封装 C-80
封装 C-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 ITE（商业）
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UEI30-033-Q48N-C muRata 村田 | 当前型号 | 当前型号 |
NPH25S2403EIC 村田 | 功能相似 | UEI30-033-Q48N-C和NPH25S2403EIC的区别 |
NPX20S24033DC 村田 | 功能相似 | UEI30-033-Q48N-C和NPX20S24033DC的区别 |
