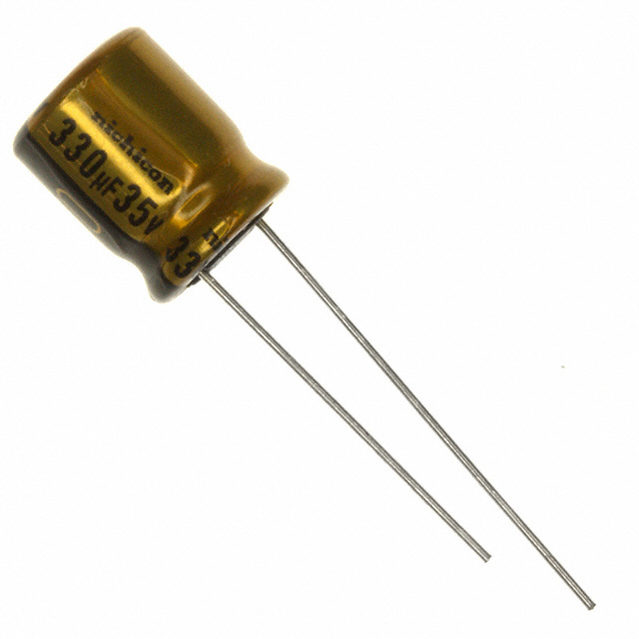

UFW1V331MPD

330uF ±20% 35V Φ10mm 12.5mm

330µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 330UF 20% 35V RADIAL

立创商城:
330uF ±20% 35V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 35volts 330uF 20%

艾睿:

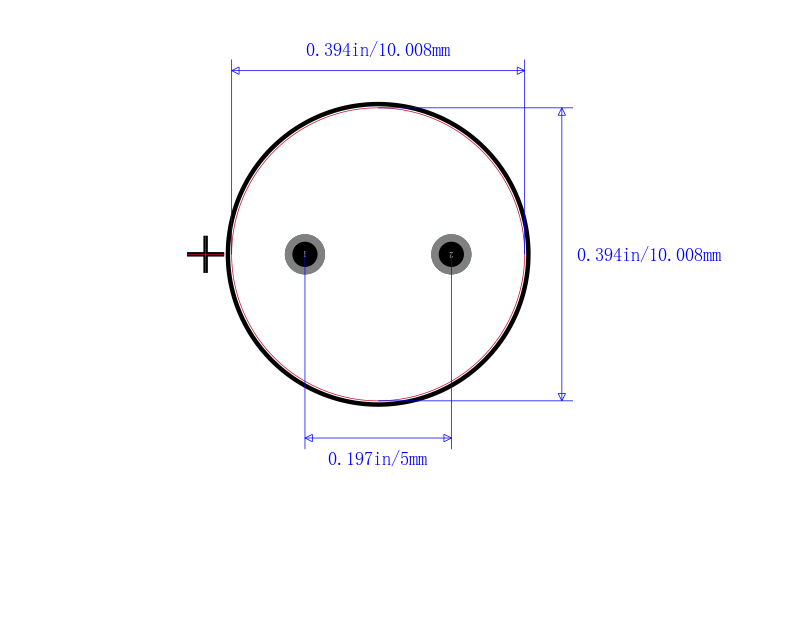

Using the aluminum anode based electrolytic UFW1V331MPD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 330uF. It has a tolerance of 20%. Its leakage current is 4@1Min|3@2Min μA. This product is 12.5 mm tall with a diameter of 10 mm. The UFW1V331MPD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Chip1Stop:
Cap Aluminum Lytic 330uF 35V 20% 10 X 12.5mm Radial 5mm 470mA 2000h 85℃ Bulk

TME:
Capacitor: electrolytic; THT; 330uF; 35VDC; Ø10x12.5mm; Pitch:5mm

Verical:
Cap Aluminum Lytic 330uF 35V 20% 10 X 12.5mm Radial 5mm 470mA 2000h 85C Bulk

Newark:
# NICHICON  UFW1V331MPD  Electrolytic Capacitor, 330 µF, 35 V, FW Series, ± 20%, Radial Leaded, 10 mm
