UCC27321PE4

单9A高速低侧MOSFET驱动器与启用 SINGLE 9-A HIGH SPEED LOW-SIDE MOSFET DRIVER WITH ENABLE

DESCRIPON

The UCC37321/2 family of high-speed drivers deliver 9 A of peak drive current in an industry

standard pinout. These drivers can drive the largest of MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions. This eliminates additional external

circuits and can replace multiple components to reduce space, design complexity and assembly

cost. Two standard logic options are offered, inverting UCC37321 and noninvertingUCC37322.

FEATURES

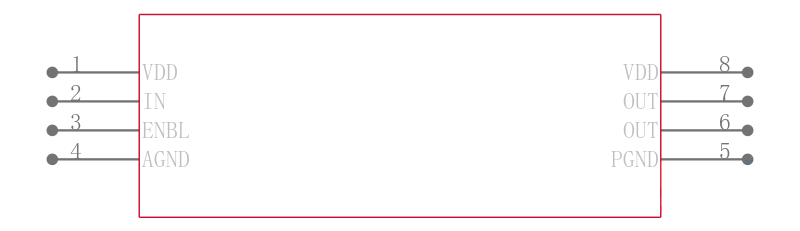

Industry-Standard Pin-Out With Addition of Enable Funtion

High-Peak Current Drive Capability of ±9 A at the Miller Plateau Region Using TrueDrive

Efficient Constant Current Sourcing Using a Unique BiPolar & CMOS Output Stage

TTL/CMOS Compatible Inputs Independent of Supply Voltage

20-ns Typical Rise and Fall Times with 10-nF Load

Typical Propagation Delay Times of 25 ns With Input Falling and 35 ns with Input Rising

4-V to 15-V Supply Voltage

Available in Thermally Enhanced MSOP PowerPADTMPackage With 4.7°C/W θjc

Rated From –40°C to 105°C

Pb-Free Finish NiPdAu on SOIC-8 and PDIP-8 Packages

APPLICATIONS

Switch Mode Power Supplies

DC/DC Converters

Motor Controllers

Class-D Switching Amplifiers

Line Drivers

Pulse Transformer Driver
