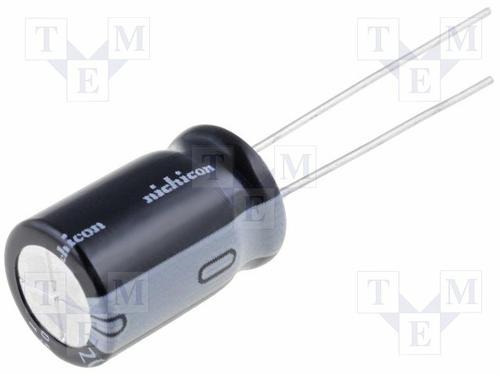

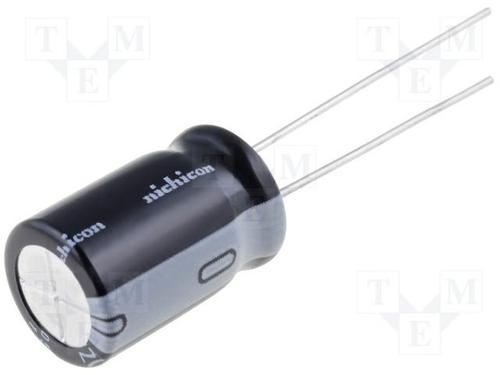

UVZ2C220MPD

22uF ±20% 160V Φ10mm 16mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 22UF 20% 160V RADIAL

立创商城:
22uF ±20% 160V

艾睿:
Using the aluminum anode based electrolytic UVZ2C220MPD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UVZ2C220MPD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 16 mm tall with a diameter of 10 mm. It has a tolerance of 20%. Its leakage current is 240.8@1Min μA. Its capacitance value is 22uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 22uF 20% Radial 10X16 LS 5mm

安富利:
Cap Aluminum 22uF 160V 20% 10 X 16mm Radial Aluminum Cylindrical Can 5mm 100mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 22uF; 160VDC; Ø10x16mm; Pitch:5mm
