UBT1H331MHD1TO

BT 系列 330 uF 50 V 125°C Ø12.5 x 20mm LS=5mm 径向 铝 电解电容

BT Series 330 uF 50 V 125°C Ř12.5 x 20mm LS=5mm Radial Aluminum Electrolytic Cap

立创商城:
330uF ±20% 50V

得捷:
CAP ALUM 330UF 20% 50V RADIAL

贸泽:
铝电解电容器 - 径向引线型 330uF 50 Volts 20%

艾睿:

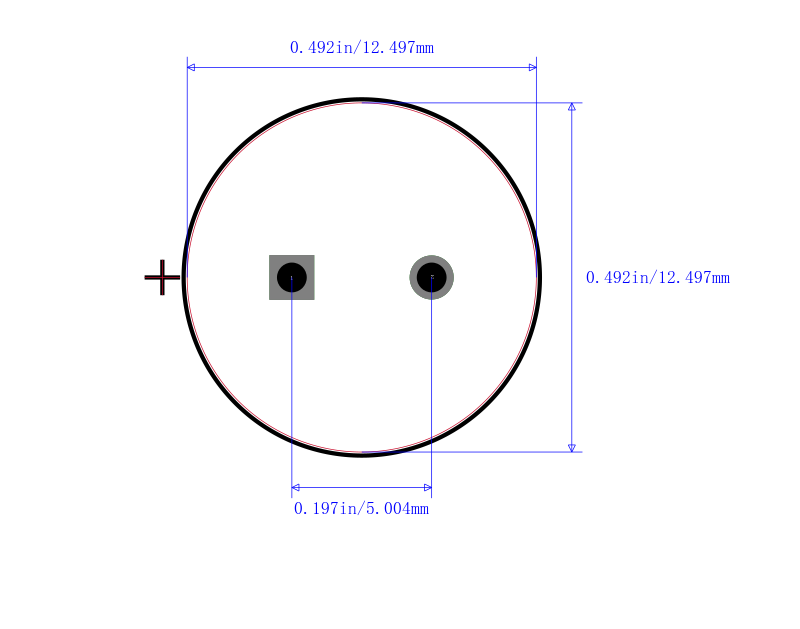

Lower the cost of your electronic circuit design by implementing this electrolytic UBT1H331MHD1TO aluminum capacitor from Nichicon. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. This product is 20 mm tall with a diameter of 12.5 mm. The UBT1H331MHD1TO aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 330uF. Its leakage current is 495@1Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.

Allied Electronics:
Capacitor

Verical:
Cap Aluminum Lytic 330uF 50V 20% 12.5 X 20mm Radial 5mm 1330mA 10000h 125C Automotive Ammo
