UHE1H121MPD

120uF ±20% 50V 730mA100kHz730mA Φ8mm

120µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C

立创商城:
120uF ±20% 50V

得捷:
CAP ALUM 120UF 20% 50V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 50volts 120uF 8x15 20% 3.5LS

艾睿:

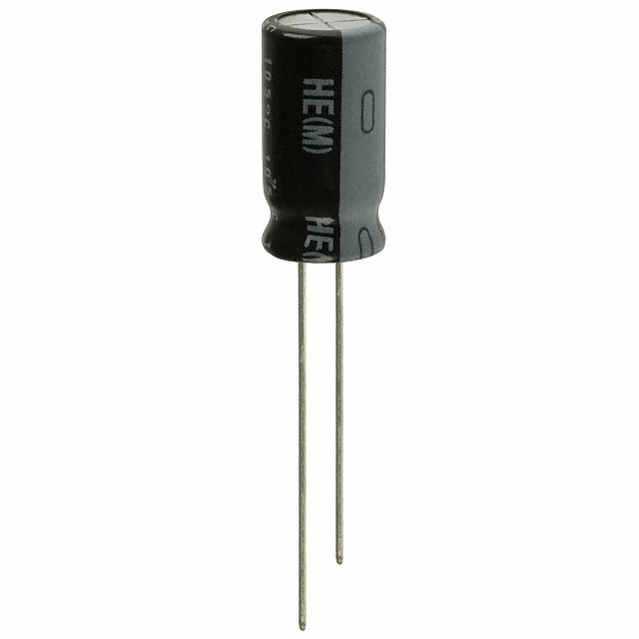

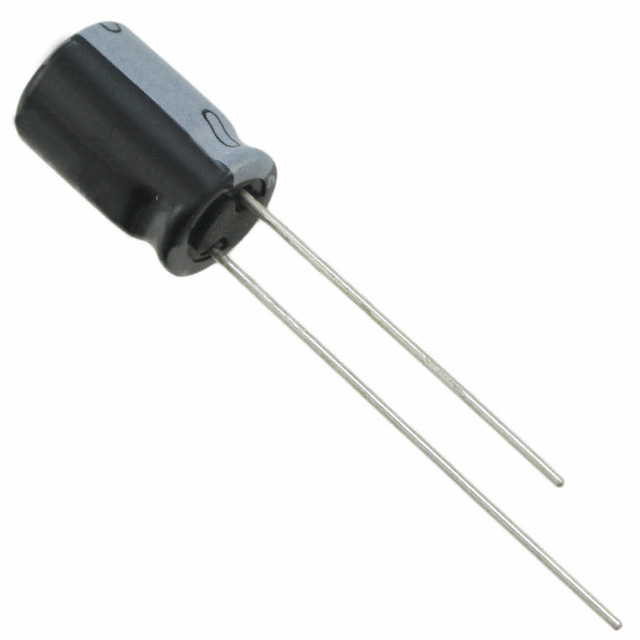

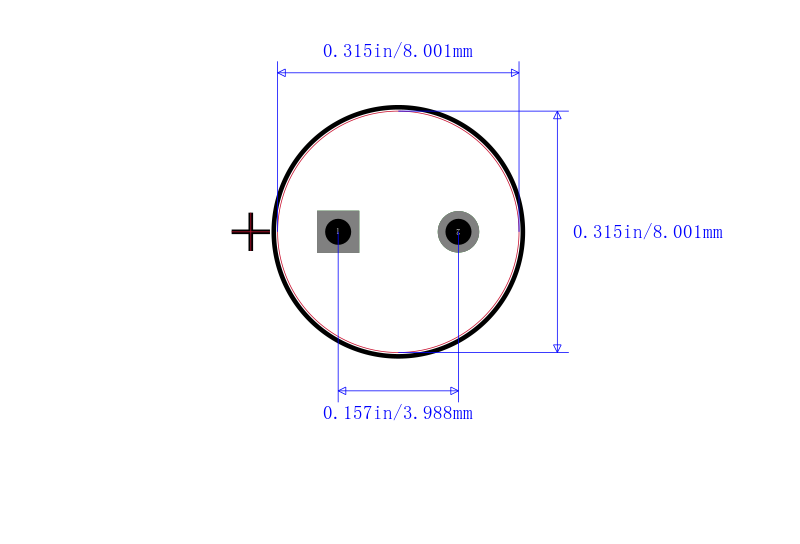

This electrolytic UHE1H121MPD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE1H121MPD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its leakage current is 60@2Min μA. This product is 15 mm tall with a diameter of 8 mm. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. Its capacitance value is 120uF.

安富利:
Cap Aluminum 120uF 50V 20% 8 X 15mm Radial 3.5mm 730mA 7000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 120uF 50V 20% 8 X 15mm Radial 3.5mm 730mA 7000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 120uF 50V 20% 8 X 15mm Radial 3.5mm 730mA 7000h 105C Bulk
