高速PWM控制器 High Speed PWM Controller
DESCRIPON
The UC1825 family of PWM control ICs is optimized for high fre quency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is designed for use in either current-mode or voltage mode systems with the capability for input voltage feed-forward.
频率 1.00 MHz
输出接口数 2
输入电压DC 30.0 V
输出电压 5V ~ 5.2V
输出电流 1500 mA
耗散功率 1000 mW
调节输出数 2
上升时间 30 ns
开关频率 1000 kHz
拓扑结构 Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
占空比 85 %
最大占空比 85 %
下降时间 30 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW

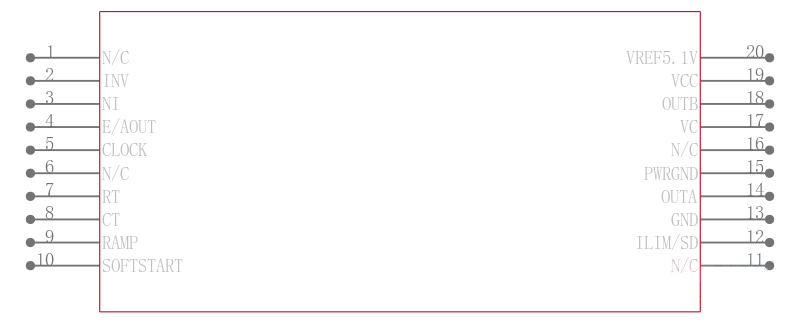

引脚数 20

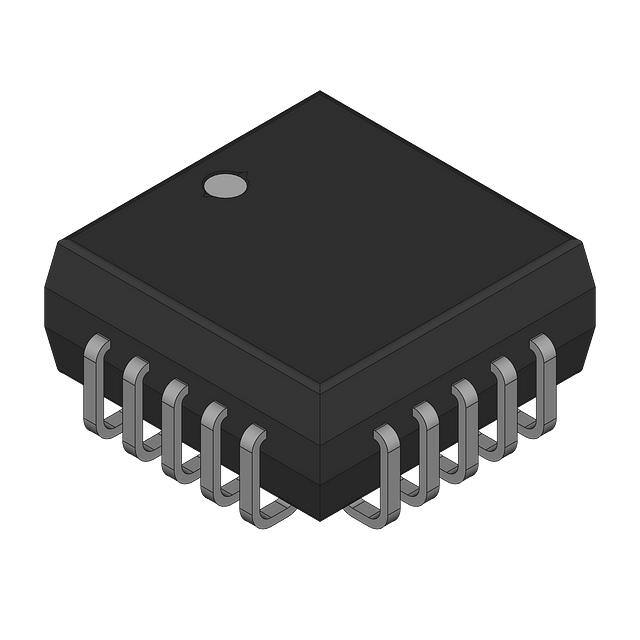

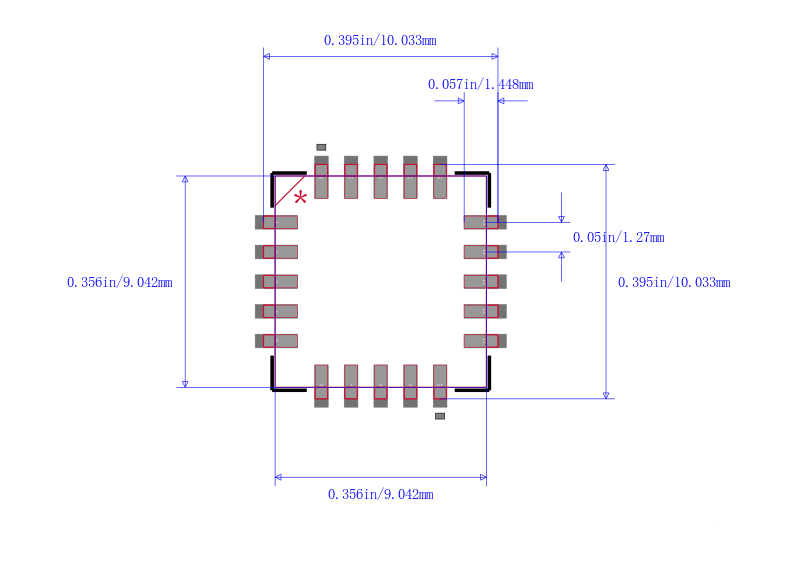

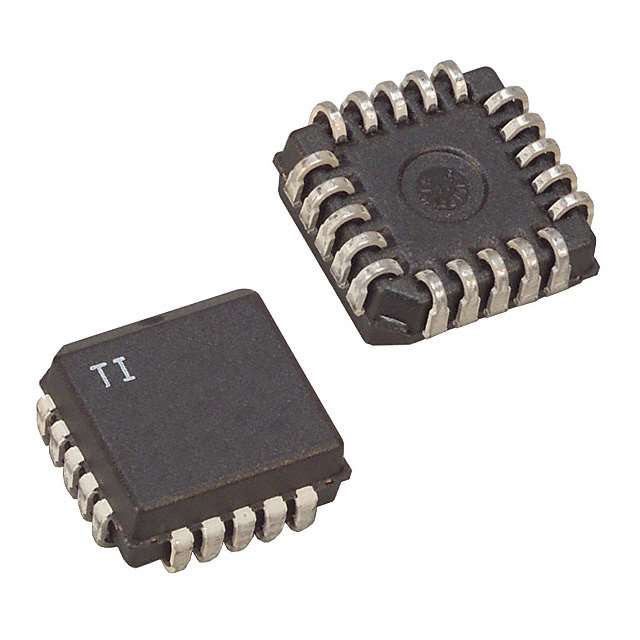

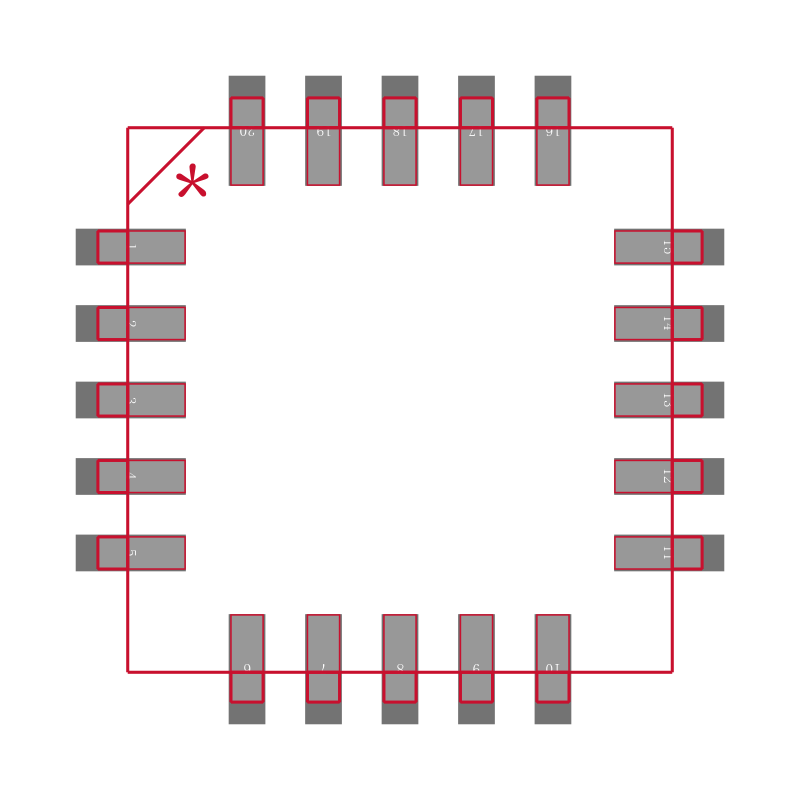

封装 LCC-20
封装 LCC-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
