680uF ±20% 16V 1050mA100kHz1050mA Φ8mm

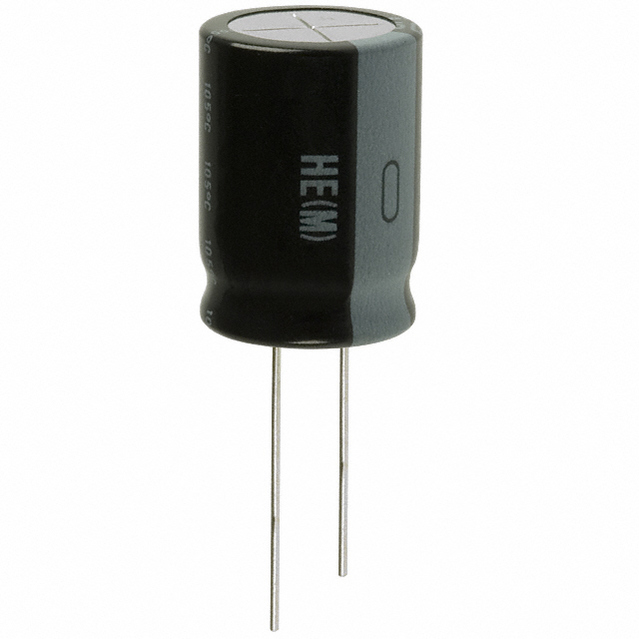

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic electrolytic capacitor from is for you. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 680uF. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. The UHE1C681MPD aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 8 mm. It has a tolerance of 20%. Its leakage current is 108.8@2Min μA.
额定电压DC 16.0 V
电容 680 µF
等效串联电阻ESR 240 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 1050 mA
纹波电流高频 787.5mA @120Hz
纹波电流低频 1.05A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 3.5 mm
长度 20.0 mm
高度 20 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 2000
寿命（小时） 7000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1C681MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
EKY-160ELL681MH20D 贵弥功 | 类似代替 | UHE1C681MPD和EKY-160ELL681MH20D的区别 |
UHE1C681MPD1TD 尼吉康 | 类似代替 | UHE1C681MPD和UHE1C681MPD1TD的区别 |
UHM1C681MPD3 尼吉康 | 类似代替 | UHE1C681MPD和UHM1C681MPD3的区别 |
