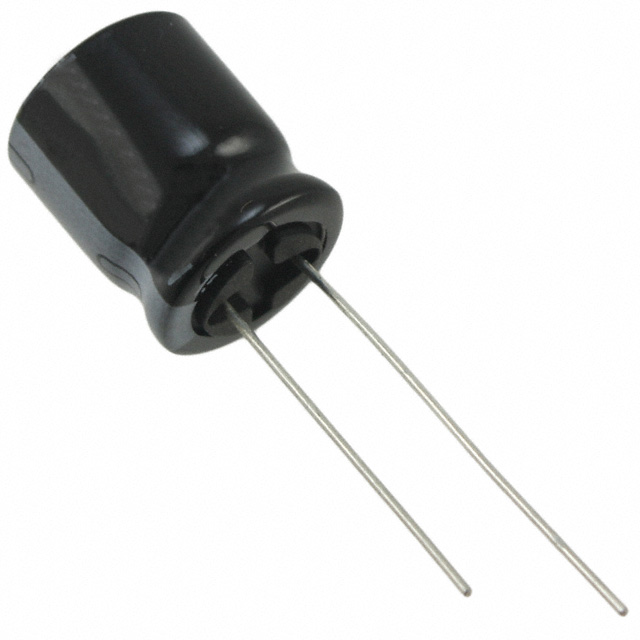

HE 系列 1000 uF 16 V 20 % 通孔 径向 铝电解电容
Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic aluminum capacitor from for its relatively high ESR! It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 1000uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 160@2Min μA. It has a tolerance of 20%. The UHE1C102MHD6 aluminum electrolytic capacitor has a radial termination style. This product is 15 mm tall with a diameter of 12.5 mm.
额定电压DC 16.0 V
电容 1000 µF
等效串联电阻ESR 160 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 1450 mA
纹波电流高频 1.088A @120Hz
纹波电流低频 1.45A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2

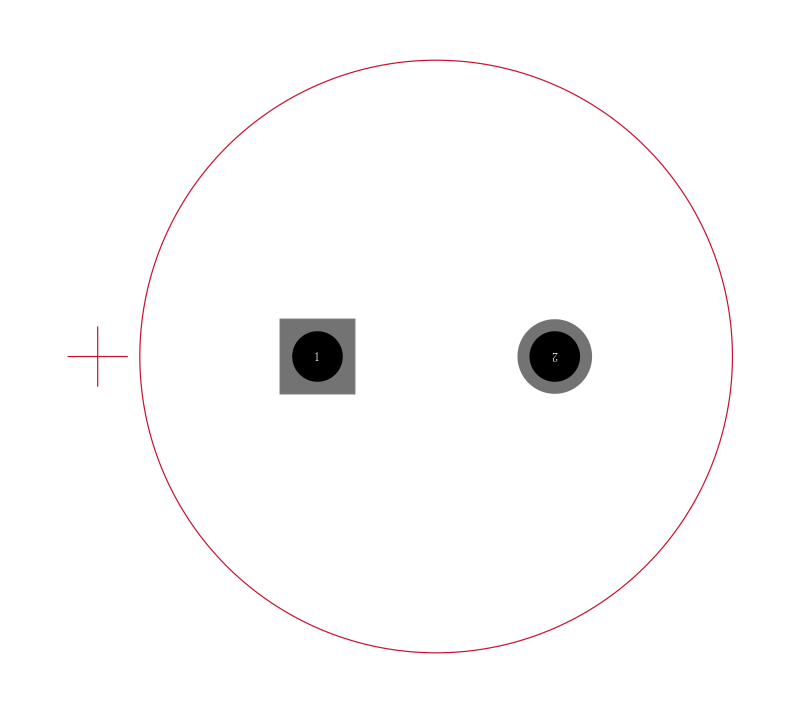

封装 Radial, CAN
引脚间距 5 mm
长度 15.0 mm
高度 15 mm
直径 12.5 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 1200
寿命（小时） 10000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1C102MHD6 Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1C102MHT6 尼吉康 | 类似代替 | UHE1C102MHD6和UHE1C102MHT6的区别 |
UHE1C102MHD6TO 尼吉康 | 功能相似 | UHE1C102MHD6和UHE1C102MHD6TO的区别 |
EKY-160ELL102MK15S 贵弥功 | 功能相似 | UHE1C102MHD6和EKY-160ELL102MK15S的区别 |
