1.5mF ±20% 6.3V 1400mA100kHz1400mA Φ10mm

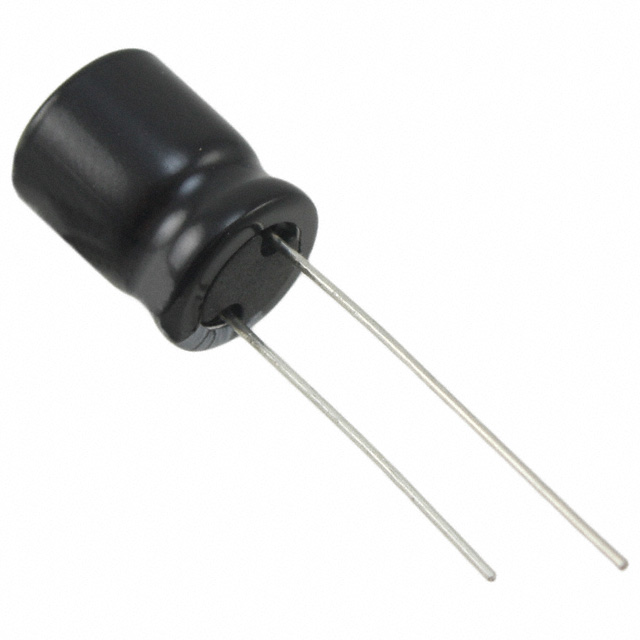

The pure aluminum anode on the electrolytic electrolytic capacitor, designed from , is the solution to your signal filtering needs. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UHE0J152MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1500uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 94.5@2Min μA. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 10 mm.
额定电压DC 6.30 V
电容 1500 µF
等效串联电阻ESR 180 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 1400 mA
纹波电流高频 1.12A @120Hz
纹波电流低频 1.4A @100kHz
额定电压 6.3 V
安装方式 Through Hole
引脚数 2

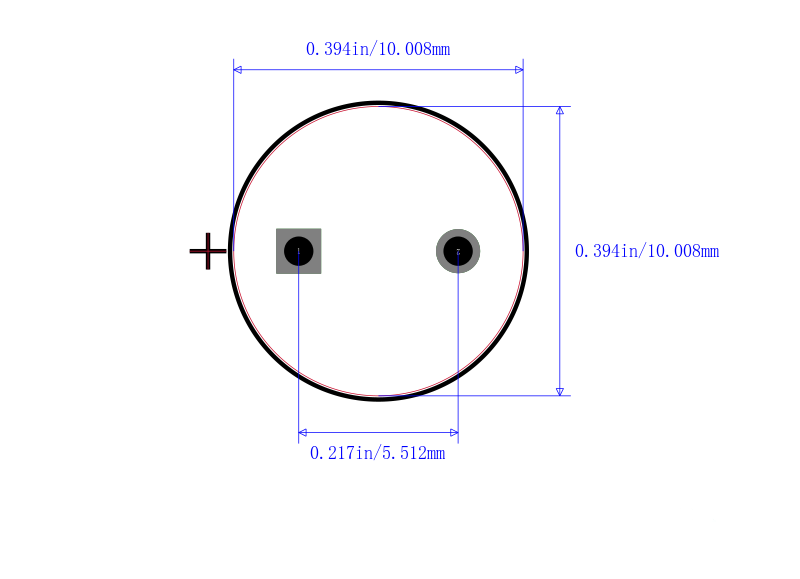

封装 Radial, CAN
引脚间距 5 mm
长度 20.0 mm
高度 20 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 1400
寿命（小时） 6000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
