8引脚的电流模式推挽PWM具有可编程斜率补偿CONTROLLERS 8-PIN CURRENT MODE PUSH-PULL PWM CONTROLLERS WITH PROGRAMMABLE SLOPE COMPENSATION
半桥，推挽 稳压器 正 输出 升压/降压 - DC DC 切换控制器 IC 8-PDIP
得捷:
IC REG CTRLR MULT TOPOLOGY 8DIP
立创商城:
升降压型 4.1V~15V 200kHz
艾睿:
Protecting your components from voltage spikes is important in any electronics circuit. Texas Instruments&s; UCC28086P current controller can help you regulate these changes. This current mode controller supports half-bridge|push-pull topology. Its 2 PWM outputs produce a current of 1000Max mA. This part offers a switching frequency of 50 to 1000 kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller has an operating temperature range of -40 °C to 85 °C. This device has a maximum of 15 V. This current mode controller&s;s maximum duty cycle is 50 %.
安富利:
Current Mode PWM Controller 1A 8-Pin PDIP Tube
Chip1Stop:
Current Mode PWM Controller 1A 8-Pin PDIP Tube
Verical:
Current Mode PWM Controller 1A 50kHz to 1000kHz 8-Pin PDIP Tube
德州仪器TI:
Current mode push-pull PWM with prog. slope comp, 100µs soft start, 4.3/4.1 UVLO, -40°C to 85°C
频率 1.00 MHz
输出接口数 2
输出电压 500 mV
输出电流 1 A
供电电流 2.5 mA
耗散功率 1 W
调节输出数 2
上升时间 25 ns
开关频率 200 kHz
拓扑结构 Half-Bridge, Push-Pull
占空比 50 %
最大占空比 50 %
下降时间 25 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 4.3V ~ 15V
安装方式 Through Hole
引脚数 8

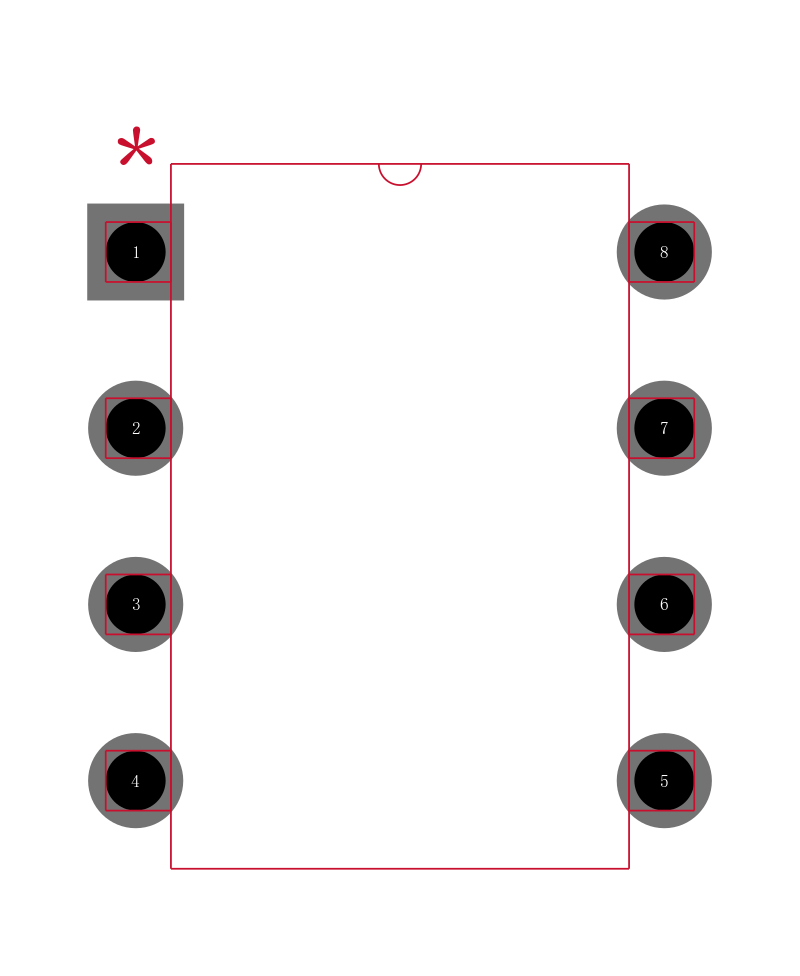

封装 PDIP-8
封装 PDIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
