220uF ±20% 63V 595mA100kHz595mA Φ10mm

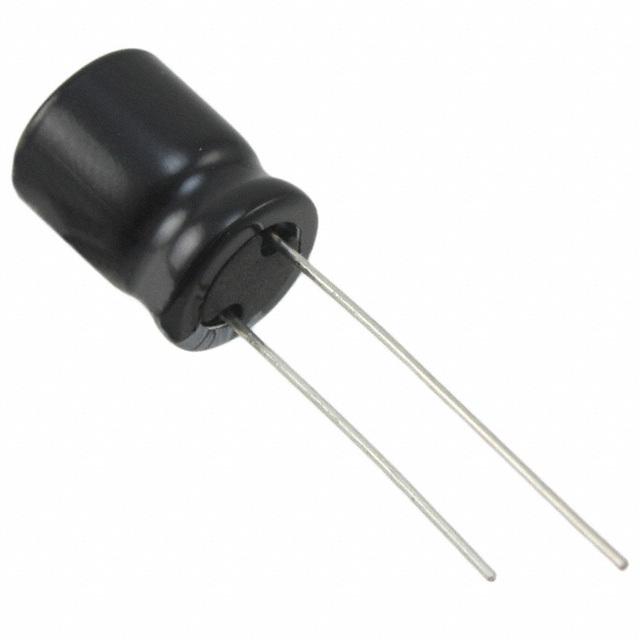

This electrolytic aluminum capacitor from has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 25 mm tall with a diameter of 10 mm. Its capacitance value is 220uF. Its leakage current is 138.6@2Min μA. The UHE1J221MPD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%.
额定电压DC 63 V
电容 220 µF
等效串联电阻ESR 840 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 595 mA
纹波电流高频 416.5mA @120Hz
工作温度Max 105 ℃
工作温度Min 40 ℃
额定电压 63 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
长度 25 mm
高度 25 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 1200
寿命（小时） 7000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1J221MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
EKZE630ELL221MJ25S 贵弥功 | 功能相似 | UHE1J221MPD和EKZE630ELL221MJ25S的区别 |
EEUFR1J221L 松下 | 功能相似 | UHE1J221MPD和EEUFR1J221L的区别 |
EST227M063AH5AA 基美 | 功能相似 | UHE1J221MPD和EST227M063AH5AA的区别 |
