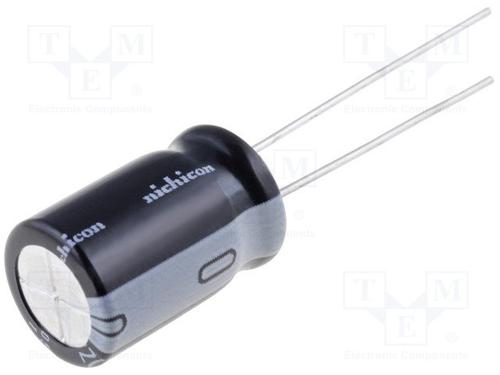

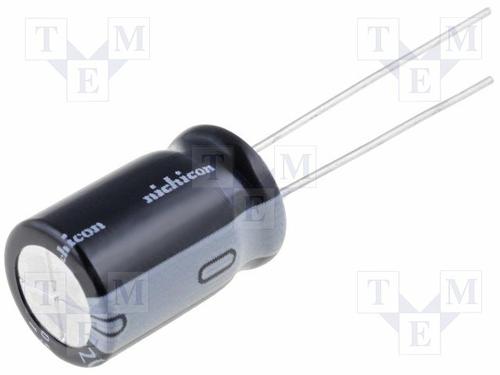

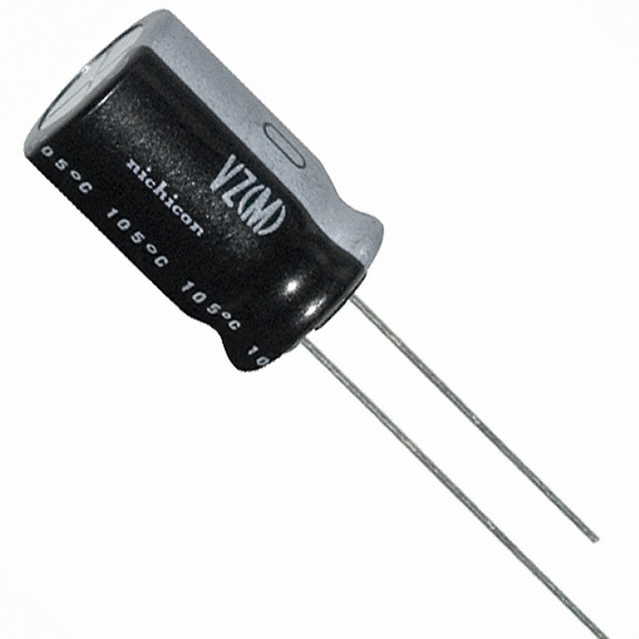

UVZ2D220MPD

22uF ±20% 200V Φ10mm 20mm

**Features:

**

* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.1 to 33000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

立创商城:
22uF ±20% 200V

得捷:
CAP ALUM 22UF 20% 200V RADIAL

艾睿:

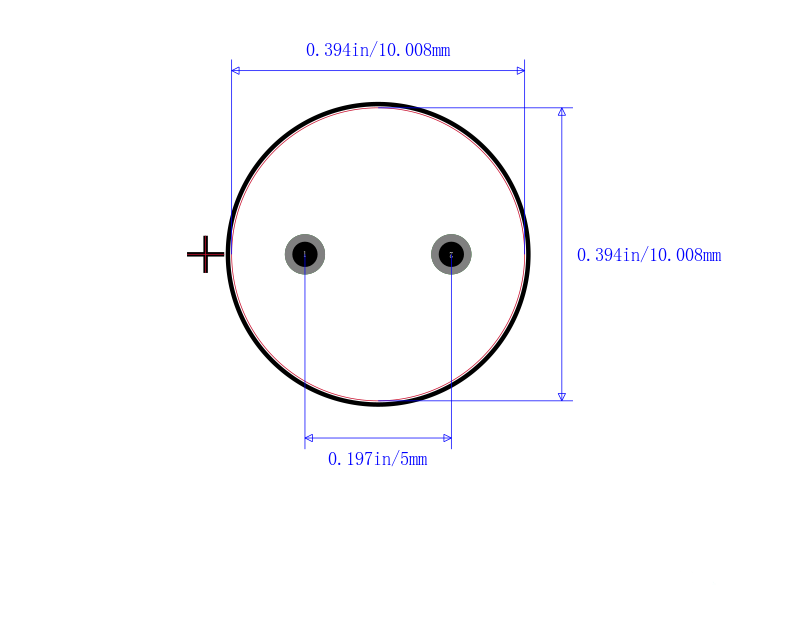

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UVZ2D220MPD electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 10 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 22uF. The UVZ2D220MPD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its leakage current is 276@1Min μA.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 22uF 20% Radial 10X20 LS 5mm

安富利:
Cap Aluminum 22uF 200V 20% 10 X 20mm Radial Aluminum Cylindrical Can 5mm 120mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; THT; 22uF; 200VDC; Ø10x20mm; Pitch:5mm

Verical:
Cap Aluminum Lytic 22uF 200V 20% 10 X 20mm Radial 5mm 120mA 1000h 105C Bulk

Newark:
# NICHICON  UVZ2D220MPD  Electrolytic Capacitor, 22 µF, 200 V, VZ Series, ± 20%, Radial Leaded, 10 mm
