2.2mF ±20% 10V 1940mA100kHz1940mA Φ16mm
Using this electrolytic aluminum capacitor from in your electronic circuit you"ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 15 mm tall with a diameter of 16 mm. It has a tolerance of 20%. Its capacitance value is 2200uF. The UHE1A222MHD3 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 220@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.
额定电压DC 10 V
电容 2200 µF
等效串联电阻ESR 120 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 1940 mA
纹波电流高频 1.552A @120Hz
纹波电流低频 1.94A @100kHz
工作温度Max 105 ℃
工作温度Min 40 ℃
额定电压 10 V

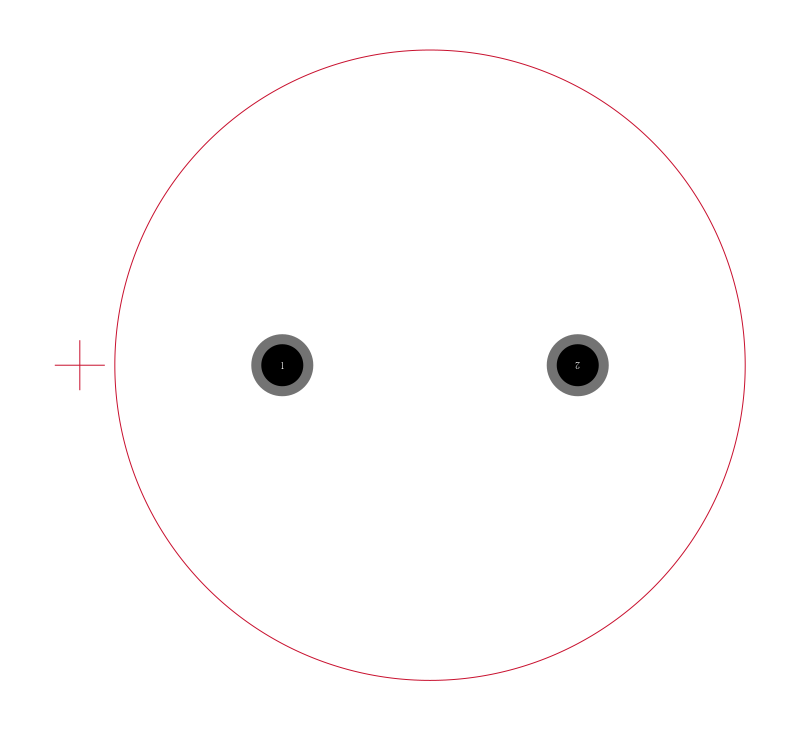

安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
长度 15 mm
高度 15 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 700
寿命（小时） 8000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1A222MHD3 Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1A222MHT3 尼吉康 | 功能相似 | UHE1A222MHD3和UHE1A222MHT3的区别 |
