UPW1C822MHD

105°C

PW 系列径向 6.3 到 35V

欧时:

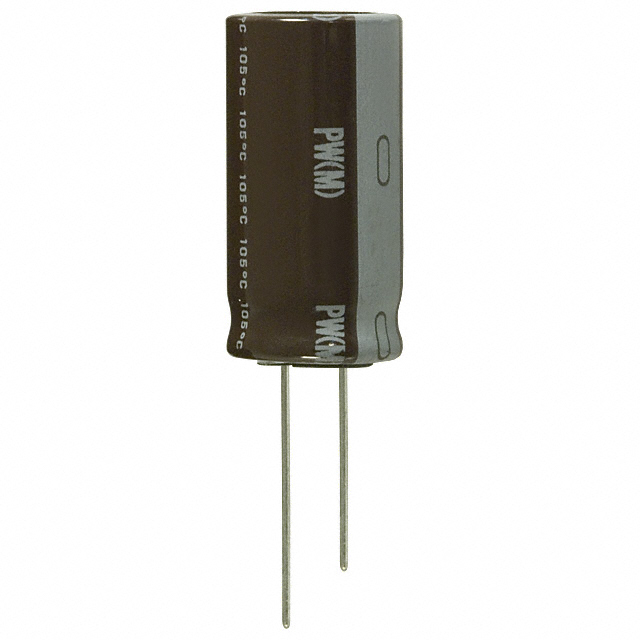

Nichicon 铝电解电容器 PW 系列 16V dc 8200μF 通孔 UPW1C822MHD, ±20%容差, 最高+105°C

立创商城:
8200uF ±20% 16V

得捷:
CAP ALUM 8200UF 20% 16V RADIAL

艾睿:

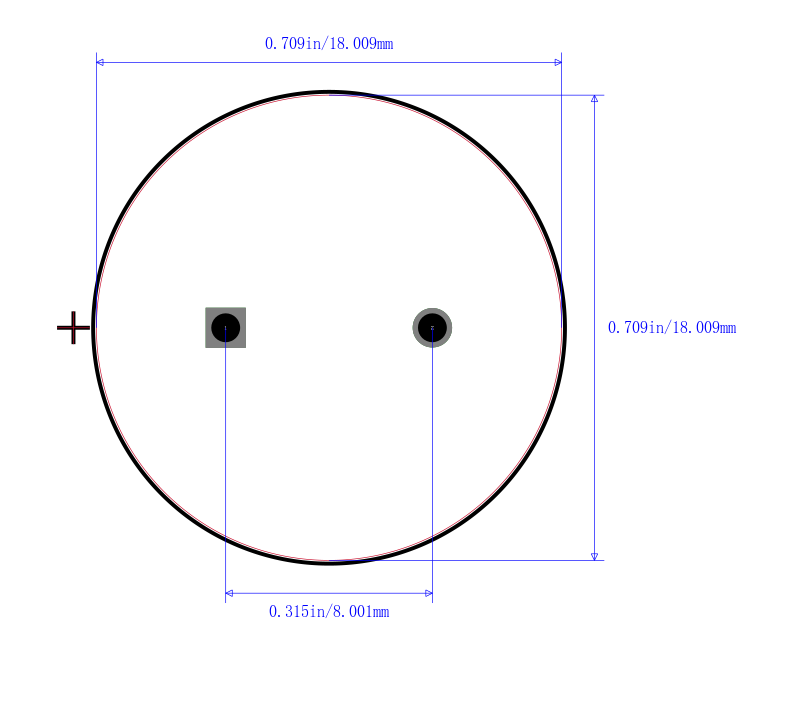

By using pure aluminum foil in the anode, this electrolytic UPW1C822MHD aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPW1C822MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. This product is 35.5 mm tall with a diameter of 18 mm. It has a tolerance of 20%. Its leakage current is 3936@1Min μA. Its capacitance value is 8200uF.

Allied Electronics:
8200uF 16 V dc Aluminium Electrolytic Capacitor, PW Series 8000h 18Dia.x35.5mm

安富利:
Cap Aluminum 8200uF 16V 20% 18 X 35.5mm Radial 7.5mm 3680mA 8000 hr 105°C Bulk

TME:

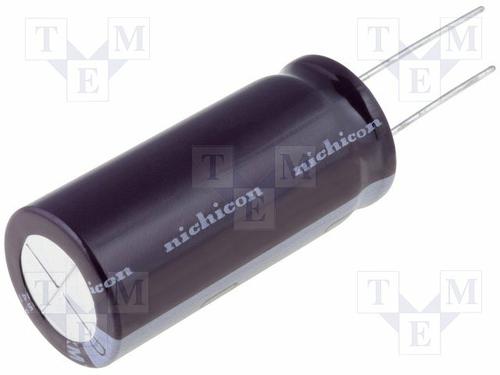

Capacitor: electrolytic; low impedance; THT; 8200uF; 16VDC; ±20%

Verical:
Cap Aluminum Lytic 8200uF 16V 20% 18 X 35.5mm Radial 7.5mm 3680mA 8000h 105C Automotive Bulk
