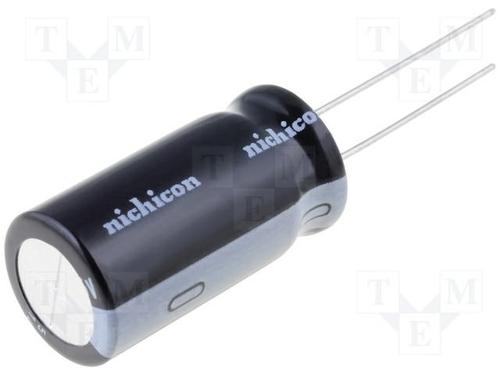

VR 系列 3300 uF 50 V 20 % 通孔 径向 铝电解电容
Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 4950@1Min|1650@2Min μA. Its capacitance value is 3300uF. This product is 30 mm tall with a diameter of 22 mm. The UVR1H332MRD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 1 mm and a pitch of 10 mm. It has a tolerance of 20%.
额定电压DC 50.0 V
工作电压 50 VDC
电容 3300 µF
容差 ±20 %
产品系列 UVR
纹波电流 2.45 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 10 mm
长度 30.0 mm
高度 30 mm
直径 22.0 mm
封装 Radial, CAN
引脚间距 10 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 50
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UVR1H332MRD6 Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVR1H332MRA6 尼吉康 | 类似代替 | UVR1H332MRD6和UVR1H332MRA6的区别 |
ESMG500ELL332MP30S 贵弥功 | 功能相似 | UVR1H332MRD6和ESMG500ELL332MP30S的区别 |
ESMH500VSN332MP30T 贵弥功 | 功能相似 | UVR1H332MRD6和ESMH500VSN332MP30T的区别 |
