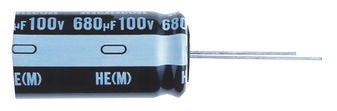

UHE1J102MHD6

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UHE 63V 1000muF 卤20% 0.709Dia 18.00mm

Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The UHE1J102MHD6 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 630@2Min μA. This product is 31.5 mm tall with a diameter of 18 mm. Its capacitance value is 1000uF.
