UHE2A681MHD

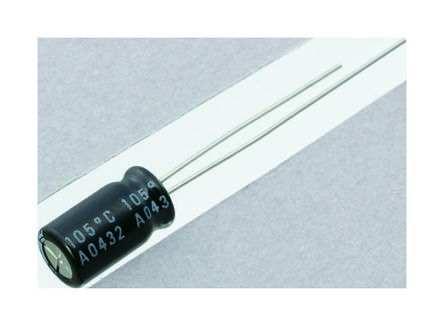

铝电解电容器 HE 系列 105°CNichicon 的 HE 系列电解电容器可提供低阻抗、高稳定性、微型解决方案。 这些紧凑型电解电容器采用 PET（非 PVC）套管制成，带无铅引线。Temperature range | -40 to 105°C ---|--- Capacitance tolerance | ±20% 120Hz, 20°C Leakage current 2min | 0.01CV or 3μA, whichever is greater Life expectancy @ 105°C | > 4000 hours @ rated voltage and ripple current

Choose this electrolytic aluminum capacitor from for its relatively high ESR. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. The UHE2A681MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 680uF. Its leakage current is 680@2Min μA. This product is 35.5 mm tall with a diameter of 18 mm.
