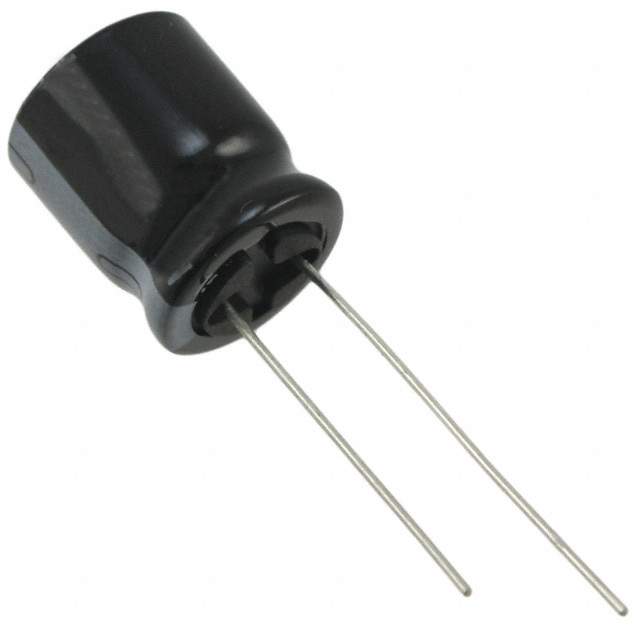

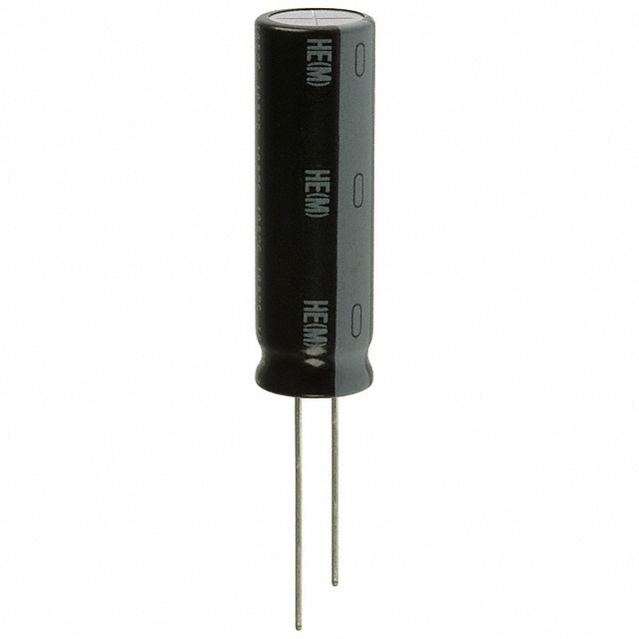

铝电解电容器 - 径向引线型 35volts 1800uF 12.5x40 20% 5LS
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic electrolytic capacitor from is for you. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 1800uF. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 5 mm. The UHE1V182MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 630@2Min μA. This product is 40 mm tall with a diameter of 12.5 mm.
额定电压DC 35.0 V
电容 1800 µF
等效串联电阻ESR 56.0 mΩ
容差 ±20 %
产品系列 UHE
纹波电流 3350 mA
纹波电流高频 2.68A @120Hz
纹波电流低频 3.35A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 35 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
长度 40 mm
高度 40 mm
直径 12.5 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 400
寿命（小时） 10000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UHE1V182MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UHE1V182MHT 尼吉康 | 类似代替 | UHE1V182MHD和UHE1V182MHT的区别 |
EEUFR1V182L 松下 | 功能相似 | UHE1V182MHD和EEUFR1V182L的区别 |
EKY-350ELL182MK40S 贵弥功 | 功能相似 | UHE1V182MHD和EKY-350ELL182MK40S的区别 |
