UCC2807D-3概述

可编程最大占空比的PWM控制器 Programmable Maximum Duty Cycle PWM Controller

升压,反激,正激转换器 稳压器 正 输出 升压,升压/降压 DC DC 切换控制器 IC 8-SOIC


得捷:
IC REG CTRLR MULT TOPOLOGY 8SOIC


立创商城:
升降压型 4.1V~13.5V 202kHz


德州仪器TI:
Economy low power BICMOS 1MHz current mode PWM with 4.3V/4.1V UVLO, Prog duty cycle, -40C to 85C


贸泽:
Switching Controllers Prgmb Max Duty Cycle PWM Controller


艾睿:
Properly supply the right amount of current to an external system using this UCC2807D-3 current controller from Texas Instruments. This current mode controller supports boost|flyback|forward topology. Its single PWM output produces a current of 1000 mA. Its switching regulator has a frequency of 1000 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller&s;s maximum duty cycle is 81 %. This device has a maximum of 13.5 V. This current mode controller has a minimum operating temperature of -65 °C and a maximum of 150 °C.


安富利:
Current Mode PWM Controller 1A 8-Pin SOIC Tube


Verical:
Current Mode PWM Controller 1A 1000kHz 8-Pin SOIC Tube


UCC2807D-3中文资料参数规格
技术参数

输出接口数 1

输出电流 1 A

供电电流 2.1 mA

耗散功率 0.65 W

调节输出数 1

上升时间 20 ns

开关频率 1000 kHz

拓扑结构 Boost, Flyback, Forward

占空比 81 %

最大占空比 81 %

下降时间 20 ns

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 650 mW

电源电压 4.3V ~ 10V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

UCC2807D-3引脚图与封装图

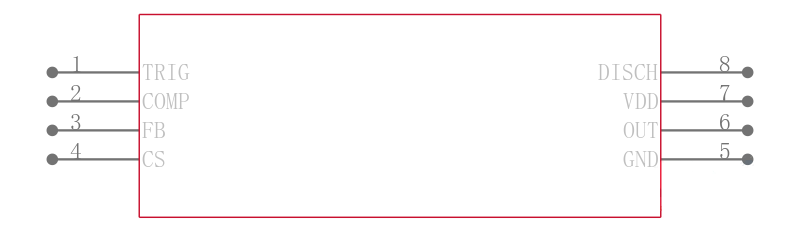

UCC2807D-3引脚图

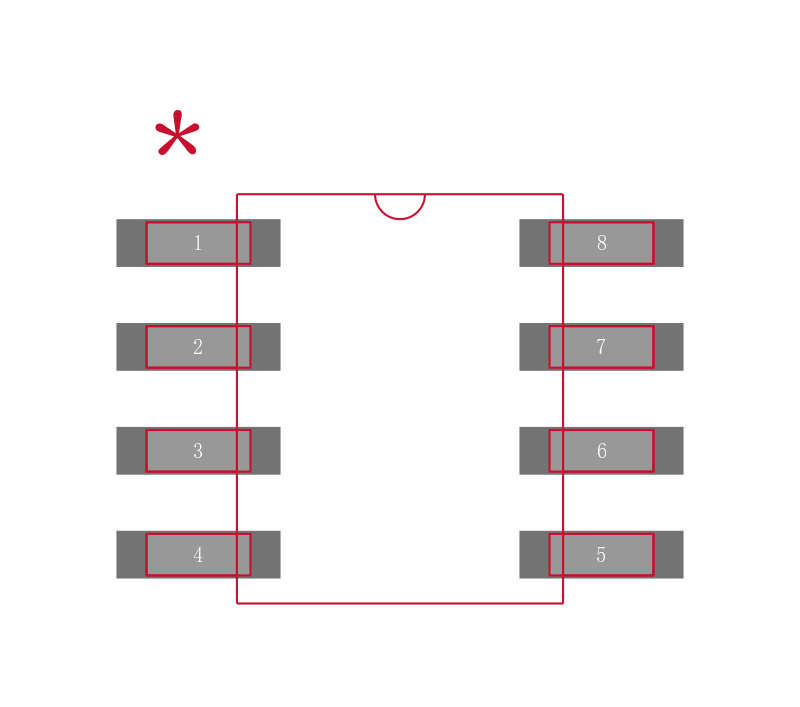

UCC2807D-3封装图

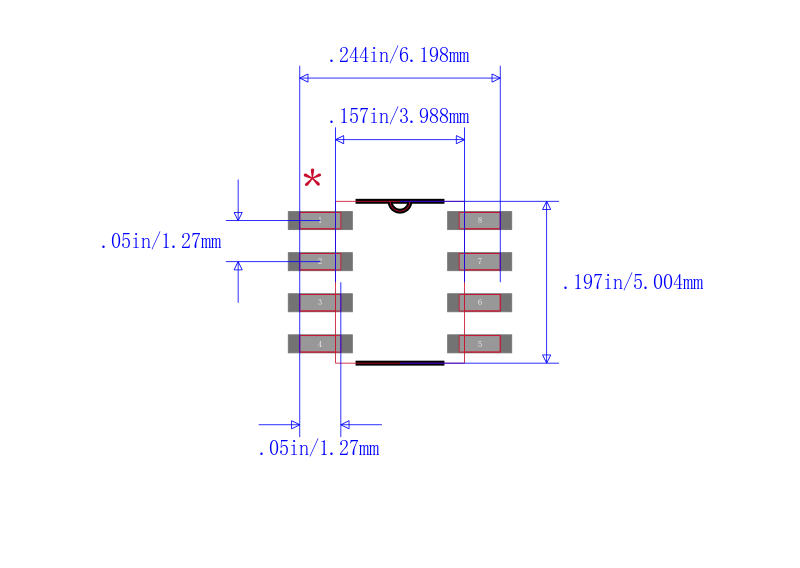

UCC2807D-3封装焊盘图
在线购买UCC2807D-3
型号: UCC2807D-3
制造商: TI 德州仪器
描述:可编程最大占空比的PWM控制器 Programmable Maximum Duty Cycle PWM Controller
替代型号UCC2807D-3
型号/品牌 代替类型 替代型号对比

UCC2807D-3

TI 德州仪器

当前型号

当前型号

UCC2807D-2

德州仪器

类似代替

UCC2807D-3和UCC2807D-2的区别

UCC2807DTR-3

德州仪器

类似代替

UCC2807D-3和UCC2807DTR-3的区别

UCC2807D-1

德州仪器

类似代替

UCC2807D-3和UCC2807D-1的区别
