UVY1C223MRD

22mF ±20% 16V Φ22mm 40mm

22000µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

立创商城:
22000uF ±20% 16V

得捷:
CAP ALUM 22000UF 20% 16V RADIAL

艾睿:

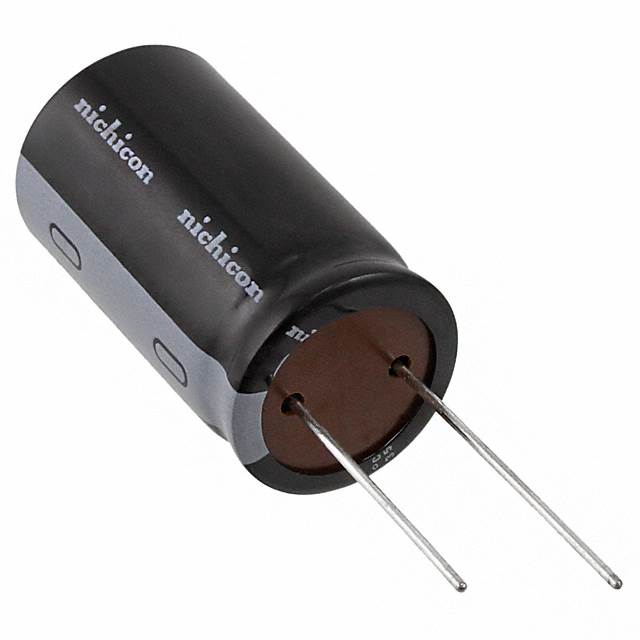

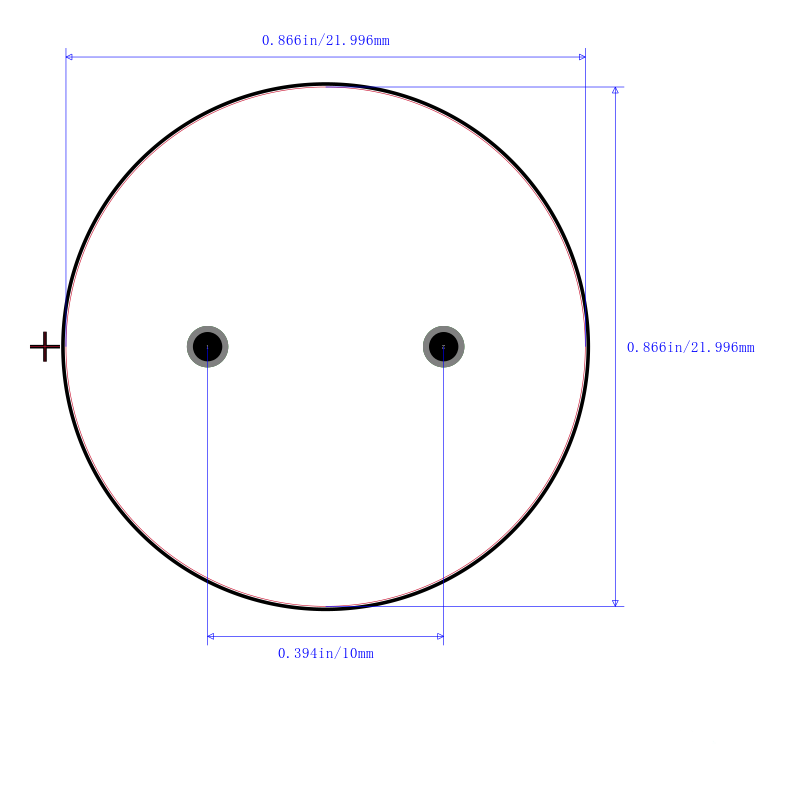

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic UVY1C223MRD aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 1 mm and a pitch of 10 mm. Its leakage current is 10560@1Min|3520@2Min μA. The UVY1C223MRD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 40 mm tall with a diameter of 22 mm. Its capacitance value is 22000uF.

安富利:
Cap Aluminum 22000uF 16V 20% 22 X 40mm Radial 10mm 2710mA 1000 hr 105°C Bulk

Newark:
# NICHICON  UVY1C223MRD  Electrolytic Capacitor, 22000 µF, 16 V, VY Series, ± 20%, Radial Leaded, 22 mm
