URS1V332MRD

3.3mF ±20% 35V Φ20mm 25mm

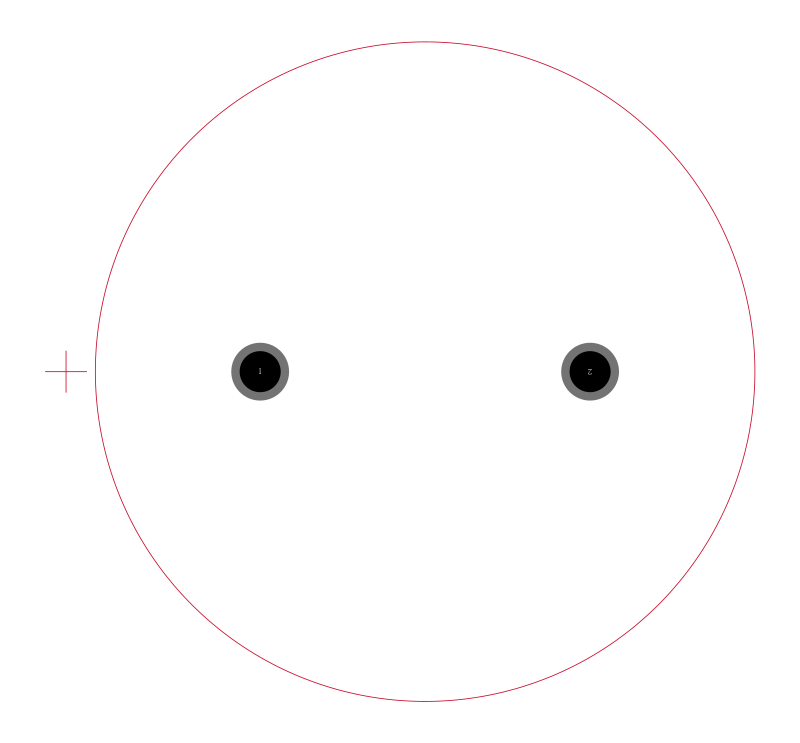

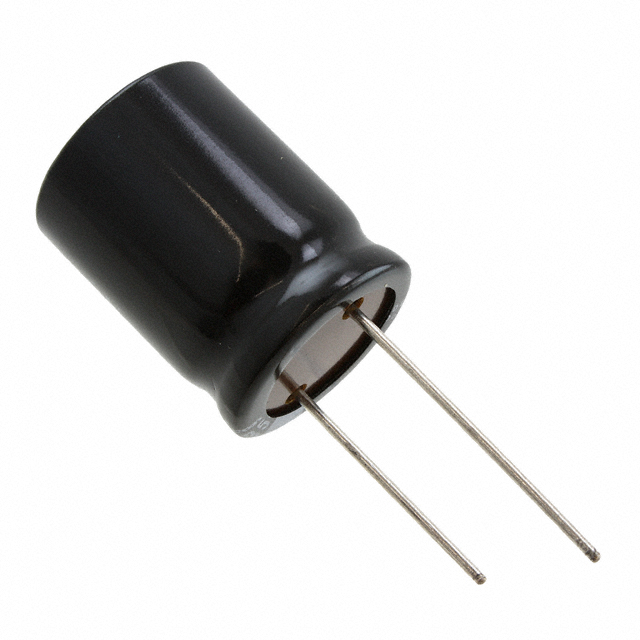

By implementing this electrolytic aluminum capacitor from in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 25 mm tall with a diameter of 20 mm. Its capacitance value is 3300uF. This part has a lead diameter of 1 mm and a pitch of 10 mm. The URS1V332MRD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 4@1Min|3@2Min μA. It has a tolerance of 20%.
