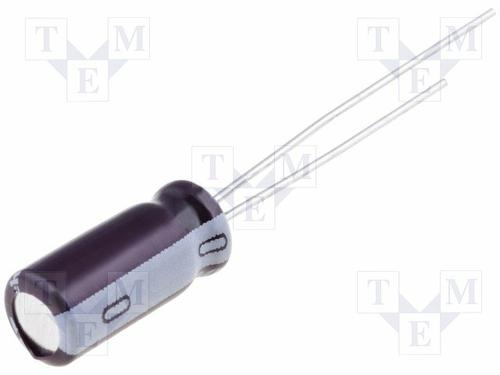

UPS1V472MHD

4.7mF ±20% 35V 3300mA100kHz3300mA Φ18mm

4700µF 35V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C

得捷:
CAP ALUM 4700UF 20% 35V RADIAL

立创商城:
4700uF ±20% 35V

艾睿:
This electrolytic UPS1V472MHD aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 40 mm tall with a diameter of 18 mm. Its leakage current is 4@1Min μA. Its capacitance value is 4700uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The UPS1V472MHD aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 4700uF 35V 20% 18 X 40mm Radial 7.5mm 3300mA 3000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 4700uF; 35VDC; ±20%

Verical:
Cap Aluminum Lytic 4700uF 35V 20% 18 X 40mm Radial 7.5mm 3300mA 3000h 105C Bulk
