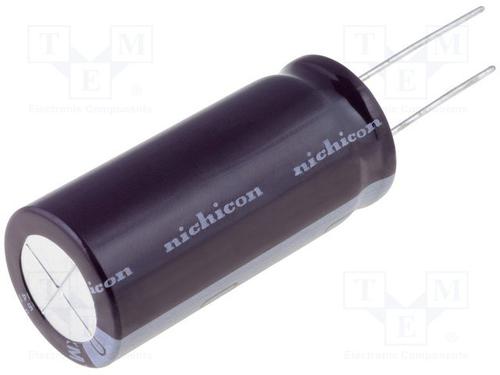

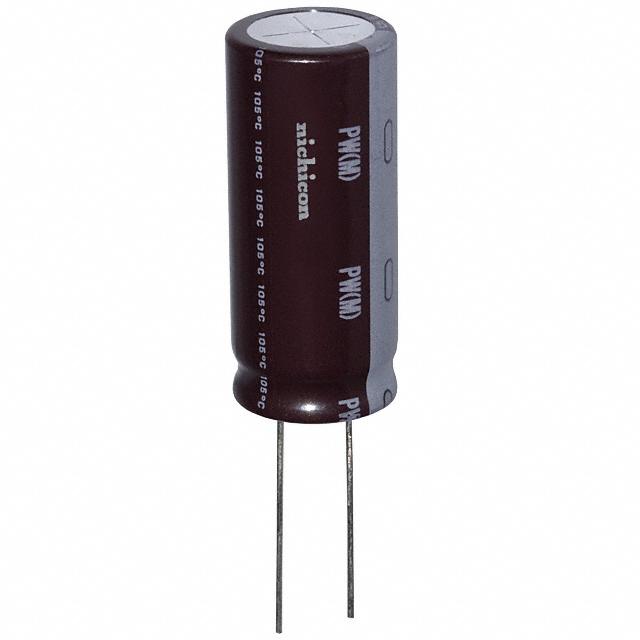

UPW2D471MRD

PW 系列径向 50 至 450VPW 铝电解电容器比 PM 系列更小的外壳尺寸和更低的阻抗 低阻抗和高可靠性，可耐受 2000 小时至 8000 小时 额定电压范围：6.3 至 450V ### 径向 105°C

PW 系列径向 50 至 450V

PW 铝电解器

比 PM 系列更小的外壳尺寸和更低的阻抗

低阻抗和高可靠性，可耐受 2000 小时至 8000 小时

额定电压范围：6.3 至 450V

得捷:
CAP ALUM 470UF 20% 200V RADIAL

欧时:
Al cap Radial PW series 200V 470uF

立创商城:
470uF ±20% 200V

贸泽:
铝电解电容器 - 径向引线型 200volts 470uF 22x50 20% 10LS

艾睿:
The pure aluminum anode on the electrolytic UPW2D471MRD electrolytic capacitor, designed from Nichicon, is the solution to your signal filtering needs. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. The UPW2D471MRD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 470uF. This product is 50 mm tall with a diameter of 22 mm. Its leakage current is 3860@1Min μA. This part has a lead diameter of 1 mm and a pitch of 10 mm.

Allied Electronics:
470uF 200 V dc Aluminium Electrolytic Capacitor, PW Series 8000h 22Dia.x50mm

安富利:
Cap Aluminum 470uF 200V 20% 22 X 50mm Radial 10mm 1310mA 8000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 470uF 200V 20% 22 X 50mm Radial 10mm 1310mA 8000h 105℃ Automotive Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 470uF; 200VDC; ±20%

Newark:
# NICHICON  UPW2D471MRD  Electrolytic Capacitor, Miniature, 470 µF, 200 V, PW Series, ± 20%, Radial Leaded, 22 mm
