UCC3916DPTRG4概述

SCSI Termpower经理 SCSI Termpower Manager

DESCRIPON

The UCC3916 SCSI termpower manager provides complete power management, hot swap capability, and circuit breaker functions with minimal external components. For most applications, the only external component required to operate the device, other than supply bypassing, is a timing capacitor which sets the fault time.

FEATURES

•Integrated Circuit Breaker Function

•Integrated 0.2Ω Power FET

•SCSI, SCSI-2, SCSI-3 Compliant

•1µA ICC When Disabled

•Programmable On Time

•Accurate 1.65A Trip Current and 2.0A Max Current

•Fixed 3% Duty Cycle

•Uni-Directional Switch

•Thermal Shutdown

UCC3916DPTRG4中文资料参数规格
技术参数

输入电压DC 6.00 V

供电电流 1 mA

通道数 1

输出电流Max 1.65 A

工作温度Max 150 ℃

工作温度Min -55 ℃

电源电压 4V ~ 6V

电源电压Max 6 V

电源电压Min 4 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

高度 1.58 mm

封装 SOIC-8

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 SCSI

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

UCC3916DPTRG4引脚图与封装图

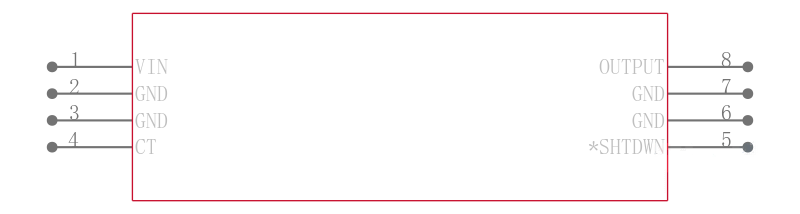

UCC3916DPTRG4引脚图
UCC3916DPTRG4封装图

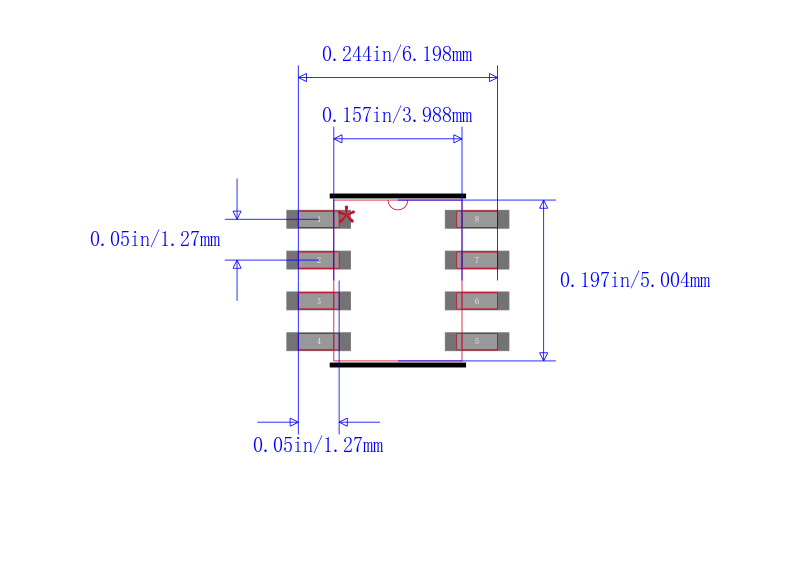

UCC3916DPTRG4封装焊盘图
在线购买UCC3916DPTRG4
型号: UCC3916DPTRG4
制造商: TI 德州仪器
描述:SCSI Termpower经理 SCSI Termpower Manager
替代型号UCC3916DPTRG4
型号/品牌 代替类型 替代型号对比

UCC3916DPTRG4

TI 德州仪器

当前型号

当前型号

UCC3916DPG4

德州仪器

完全替代

UCC3916DPTRG4和UCC3916DPG4的区别

UCC3916DP

德州仪器

类似代替

UCC3916DPTRG4和UCC3916DP的区别
