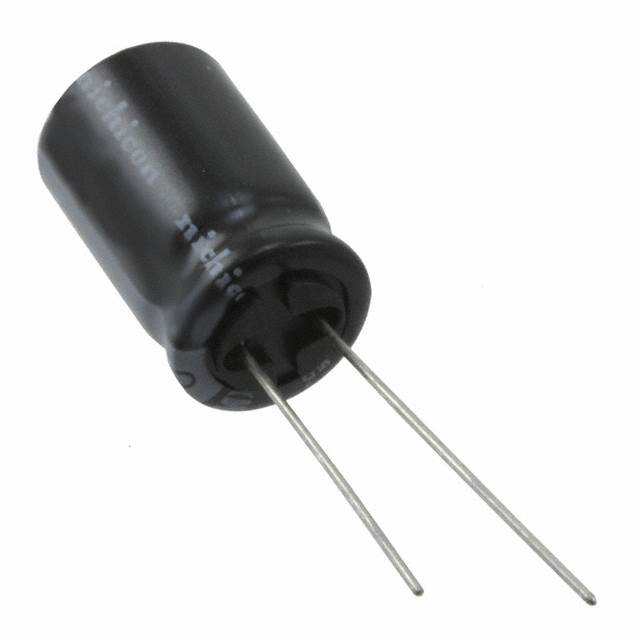

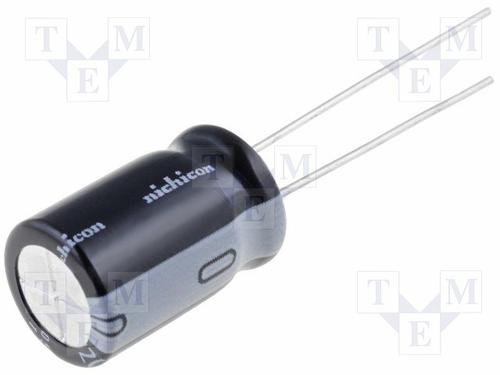

UVZ1V153MRD

Nichicon VZ 系列，24μF 到 22000Nichicon VZ 系列铝电解电容器为微型尺寸、低阻抗、高可靠性电容器，用于开关电源。 VZ 系列具有高可靠性，额定使用寿命高达 1000 小时。高可靠性 高温度范围 高波纹电流 ### 径向 105°C

VZ 系列，24μF 到 22000

Nichicon VZ 系列铝电解器为微型尺寸、低阻抗、高可靠性电容器，用于开关电源。 VZ 系列具有高可靠性，额定使用寿命高达 1000 小时。

高可靠性

高温度范围

高波纹电流

得捷:
CAP ALUM 15000UF 20% 35V RADIAL

欧时:
### Nichicon VZ 系列，24μF 到 22000Nichicon VZ 系列铝电解电容器为微型尺寸、低阻抗、高可靠性电容器，用于开关电源。 VZ 系列具有高可靠性，额定使用寿命高达 1000 小时。高可靠性 高温度范围 高波纹电流 ### 径向 105°C

立创商城:
15000uF ±20% 35V

艾睿:
Using the aluminum anode based electrolytic UVZ1V153MRD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 15000uF. It has a tolerance of 20%. The UVZ1V153MRD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 1 mm and a pitch of 12.5 mm. Its leakage current is 4@1Min|3@2Min μA. This product is 50 mm tall with a diameter of 25 mm.

Chip1Stop:
Cap Aluminum Lytic 15000uF 35V 20% 25 X 50mm Radial 12.5mm 3100mA 1000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 15000uF; 35VDC; Ø25x50mm; ±20%; 1000h

Verical:
Cap Aluminum Lytic 15000uF 35V 20% 25 X 50mm Radial 12.5mm 3100mA 1000h 105C Bulk

Newark:
# NICHICON  UVZ1V153MRD  Electrolytic Capacitor, 15000 µF, 35 V, VZ Series, ± 20%, Radial Leaded, 25 mm
