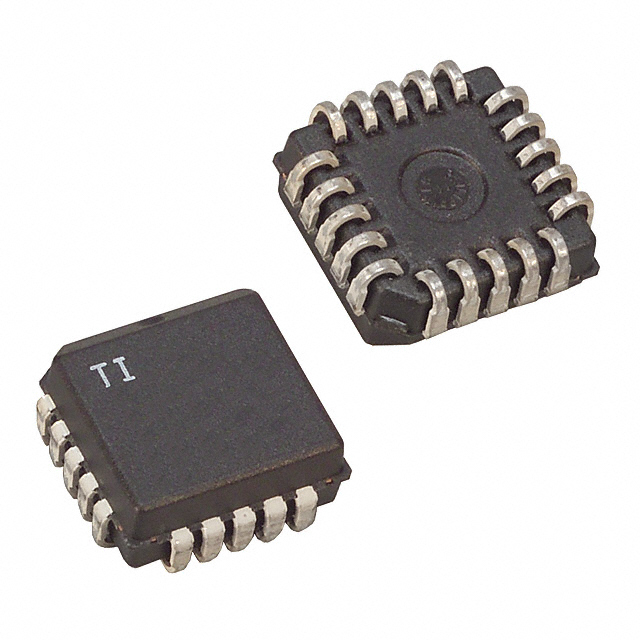

UC3903QG3

四路电源和线路监视器 Quad Supply and Line Monitor

DESCRIPON

The UC1903 family of quad supply and line monitor integrated circuits will respond to under- and over-voltage conditions on up to four continuously monitored voltage levels. An internal op-amp inverter allows at least one of these levels to be negative. A separate line/switcher sense input is available to provide early warning of line or other power source failures.

FEATURES

• Inputs for Monitoring up to Four Separate Supply Voltage Levels

• Internal Inverter for Sensing a Negative Supply Voltage

• Line/Switch Sense Input for Early Power Source Failure Warning

• Programmable Under- and Over-Voltage Fault Thresholds with Proportional Hysteresis

• A Precision 2.5-V Reference

• General Purpose Op-Amp for Auxiliary Use

• Three High Current, >3 0mA, Open-Collector Outputs Indicate Over-Voltage, Under-Voltage and Power OK Conditions

• 8-V to 40-V Supply Operation with 7-mA Stand-By Current
