四路电源和线路监视器 Quad Supply and Line Monitor
DESCRIPON
The UC1903 family of quad supply and line monitor integrated circuits will respond to under- and over-voltage conditions on up to four continuously monitored voltage levels. An internal op-amp inverter allows at least one of these levels to be negative. A separate line/switcher sense input is available to provide early warning of line or other power source failures.
FEATURES
• Inputs for Monitoring up to Four Separate Supply Voltage Levels
• Internal Inverter for Sensing a Negative Supply Voltage
• Line/Switch Sense Input for Early Power Source Failure Warning
• Programmable Under- and Over-Voltage Fault Thresholds with Proportional Hysteresis
• A Precision 2.5-V Reference
• General Purpose Op-Amp for Auxiliary Use
• Three High Current, >3 0mA, Open-Collector Outputs Indicate Over-Voltage, Under-Voltage and Power OK Conditions
• 8-V to 40-V Supply Operation with 7-mA Stand-By Current
电源电压DC 8.00V min
供电电流 18 mA
耗散功率 1000 mW
静态电流 7.00 mA
阈值电压 Adjustable
复位电压Min Adjustable
复位电压Max Adjustable
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
电源电压Max 40 V
电源电压Min 8 V
安装方式 Surface Mount

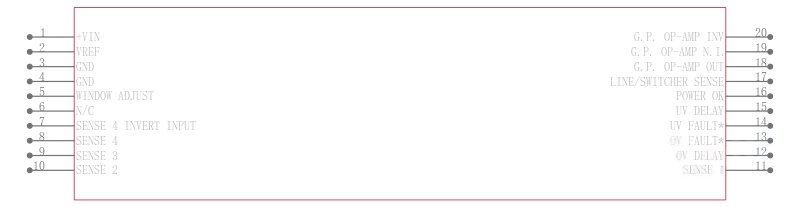

引脚数 20

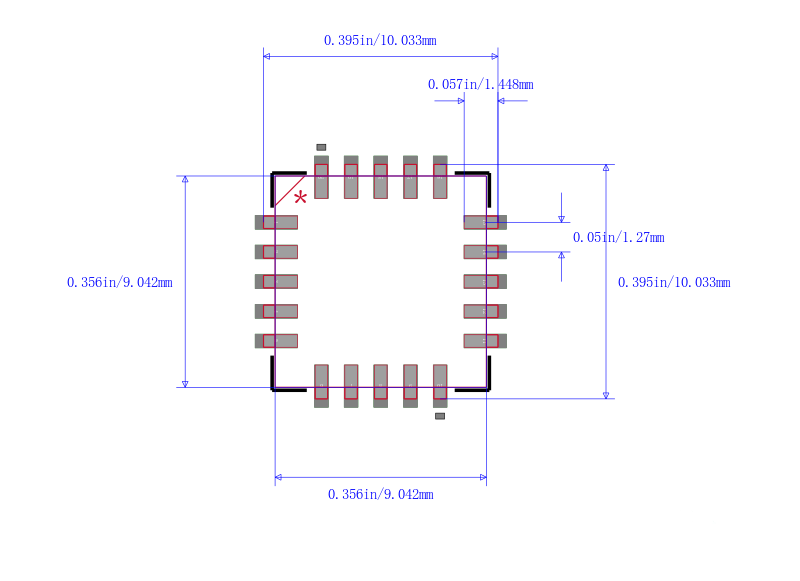

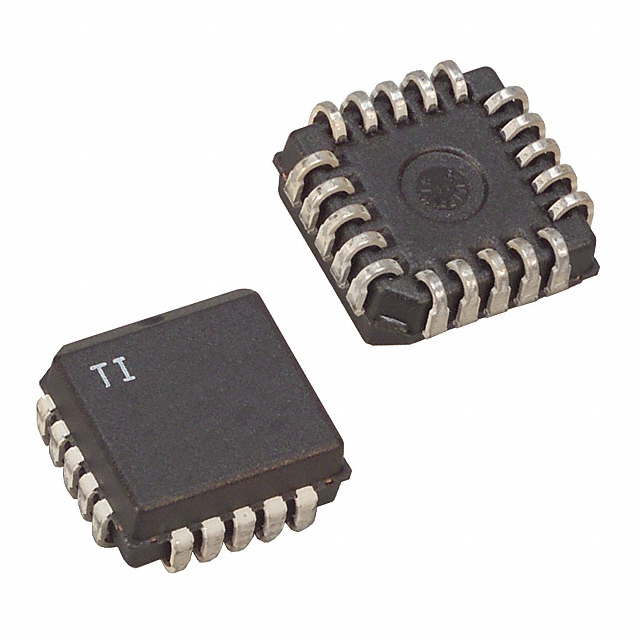

封装 PLCC-20
长度 8.96 mm
宽度 8.96 mm
高度 4.06 mm
封装 PLCC-20
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC3903Q TI 德州仪器 | 当前型号 | 当前型号 |
UC2903Q 德州仪器 | 类似代替 | UC3903Q和UC2903Q的区别 |
UC3903QG3 德州仪器 | 类似代替 | UC3903Q和UC3903QG3的区别 |
UC2903QTR 德州仪器 | 类似代替 | UC3903Q和UC2903QTR的区别 |
