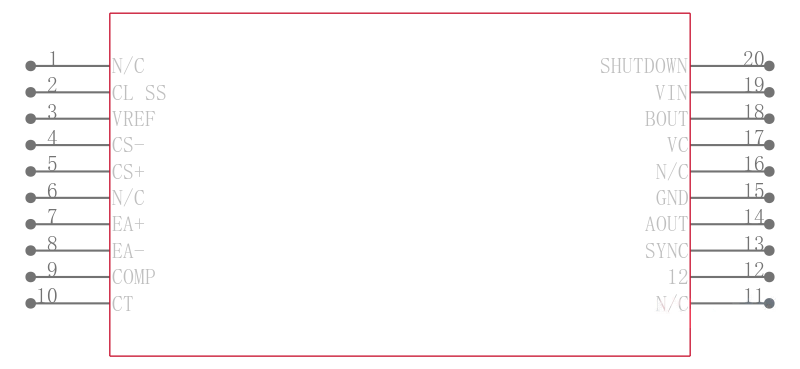

UC3856QG3

改进的电流模式PWM控制器 Improved Current Mode PWM Controller

DESCRIPON

The UC3856 is a high performance version of the popular UC3846 series of current mode controllers, and is intended for both design upgrades and new applications where speed and accuracy are important. All input to output delays have been minimized, and the current sense output is slew rate limited to reduce noise sensitivity. Fast 1.5A peak output stages have been added to allow rapid switching of power FETs.

FEATURES

•  Pin-for-Pin Compatible With the UC3846

• 65ns Typical Delay From Shutdown to Outputs, and 50ns Typical Delay From Sync to Outputs

• Improved Current Sense Amplifier With Reduced Noise Sensitivity

• Differential Current Sense with 3V Common Mode Range

• Trimmed Oscillator Discharge Current for Accurate Deadband Control

• Accurate 1V Shutdown Threshold

• High Current Dual Totem Pole Outputs 1.5A peak

• TTL Compatible Oscillator SYNC Pin Thresholds

• 4kV ESD Protection
