1mF ±20% 80V 2080mA100kHz2080mA Φ18mm

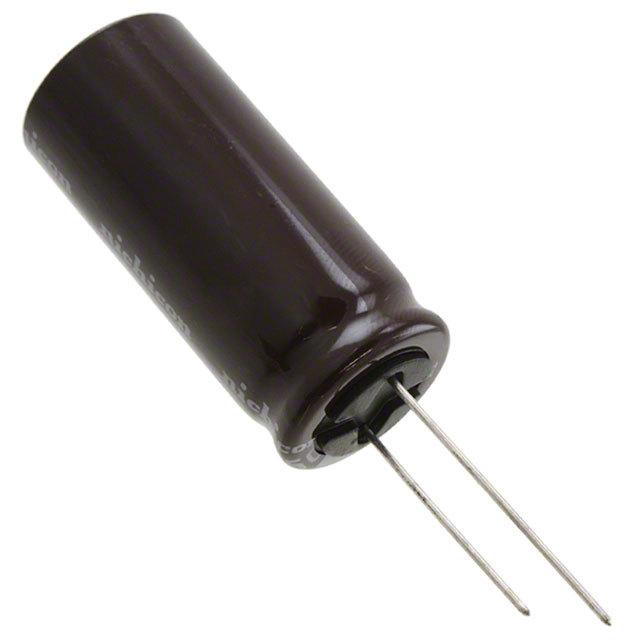

Since the anode is made out of pure aluminum, you"ll be able to filter lower frequencies with ease using "s electrolytic aluminum capacitor. It can withstand a voltage of 80 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 1000uF. Its leakage current is 2400@1Min μA. This product is 40 mm tall with a diameter of 18 mm. The UPJ1K102MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%.
额定电压DC 80.0 V
电容 1000 µF
等效串联电阻ESR 0.044 Ω
容差 ±20 %
产品系列 UPJ
纹波电流 1.79 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 80 V

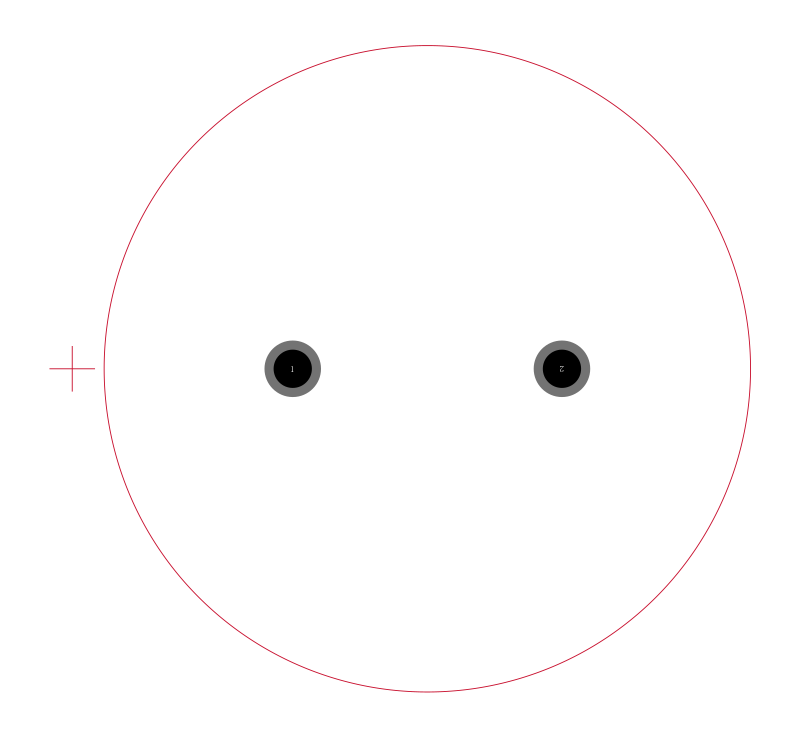

安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
高度 40 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 200
寿命（小时） 5000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UPJ1K102MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UPM1K102MHD 尼吉康 | 功能相似 | UPJ1K102MHD和UPM1K102MHD的区别 |
EKZE800ELL102MMP1S 贵弥功 | 功能相似 | UPJ1K102MHD和EKZE800ELL102MMP1S的区别 |
ELXV800ELL102MM40S 贵弥功 | 功能相似 | UPJ1K102MHD和ELXV800ELL102MM40S的区别 |
