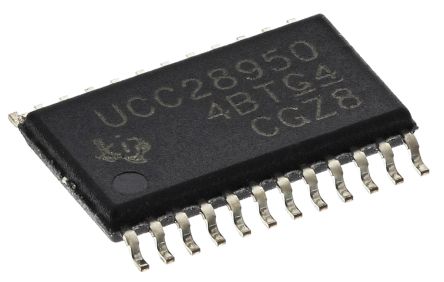

绿色环保相移全桥控制器采用同步整流 Green Phase-Shifted Full-Bridge Controller With Synchronous Rectification
全桥 稳压器 正 输出 升压/降压 - DC DC 切换控制器 IC 24-TSSOP
立创商城:
升降压型 8V~17V 200mA 1MHz
得捷:
IC REG CTRLR FULL-BRIDGE 24TSSOP
德州仪器TI:
Green phase-shifted full-bridge controller with Synchronous Rectification control
贸泽:
Switching Controllers Green Phase-Shifted Full-Bridge Cntrlr
艾睿:
Soft Sw PWM Cntrlr 1-OUT Phase Shifted Full Bridge Controller 12V 1MkHz 24-Pin TSSOP T/R
安富利:
Soft Sw PWM Cntrlr 1-OUT Phase Shifted Full Bridge Controller 12V 1MHz 24-Pin TSSOP T/R
Chip1Stop:
Soft Sw PWM Cntrlr 1-OUT Phase Shifted Full Bridge Controller 12V 1MHz 24-Pin TSSOP T/R
Verical:
Soft Sw PWM Cntrlr 1-OUT Phase Shifted Full Bridge Controller 12V 1MkHz 24-Pin TSSOP T/R
力源芯城:
具有同步整流的绿色环保相移全桥控制器
DeviceMart:
IC REG CTRLR ISO PWM 24-TSSOP
Win Source:
Full-Bridge Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 24-TSSOP
频率 1 MHz
输出接口数 1
输出电压 5 V
输出电流 200 mA
针脚数 24
调节输出数 4
上升时间 9 ns
开关频率 1000 kHz
拓扑结构 Full-Bridge
占空比 97 %
最大占空比 97 %
下降时间 7 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8V ~ 17V
电源电压Max 17 V
电源电压Min 8 V
输入电压 12 V
安装方式 Surface Mount
引脚数 24
封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCC28950PWR TI 德州仪器 | 当前型号 | 当前型号 |
UCC28950PW 德州仪器 | 类似代替 | UCC28950PWR和UCC28950PW的区别 |
UC3862N 德州仪器 | 功能相似 | UCC28950PWR和UC3862N的区别 |
UC2866N 德州仪器 | 功能相似 | UCC28950PWR和UC2866N的区别 |
